Material | PU sponge |
Thickness | 1-100mm |
Color | Black |
Surface Resistance | 103-109 Ω |
Certificate | SGS, ISO9001, ROHS |
MOQ | No MOQ |
Size | Custom Size |

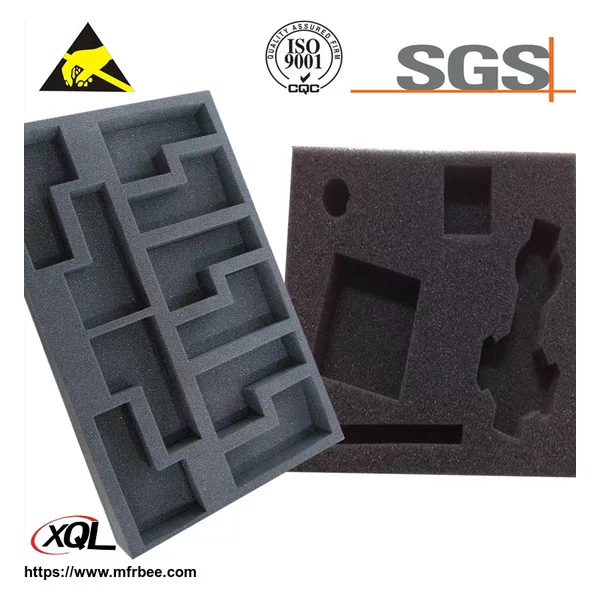

Product Keywords | PU Sponge insert |
1. Basic Process
The said product is an open-cell, conductive sponge. It is produced by making the open-cell
sponge conductive in a special way.
2. Norminal size
2.1 Normal size:
2.0m×1.0m×40mm,2.0m×1.0m×30mm;
1.0m×0.5m×40mm,1.0m×0.5m×30mm;
2.2 Special size:
2.2.1 Special thickness such as 15mm, 20mm and 25mm should be ordered;
2.2.2 Small length, width and profile product are to be ordered.
NO. | Material | Content | Remark |
1 | Polyol/polyester Resin | 55—65% | A-Component |
2 | TDI | 25—35% | B-Component |
3 | Conductive Carbon Black | 2—5% | Conductive filler |
4 | Water-soluble Resin | 10—20% | Film-forming Agent |
5 | Others | 1—2% | Processing Agent |
4. Techinical Index
No. | Item | Data |
1 | Density | 20-80Kg/m3 |
2 | Surface Resistivity | 103—106 ohm/sq |
3 | Volume Resistivity | 103—106ohm |
4 | Abrasive Potential | <50V |
5 | Attenuation Half-time | <1.0s |
5.Characteristics
5.1.Excellent ESD effect because its interior conductive lattice;
5.2.Able to leaking static electricity rapidly and free of environmental humidity;
5.3.Long time and even Permanent ESD duration(at least 3 years)
1. Vinner is equiped with world advanced computer driving production lines
2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices
3. Manufactured in Class 100,000 Cleanroom.
