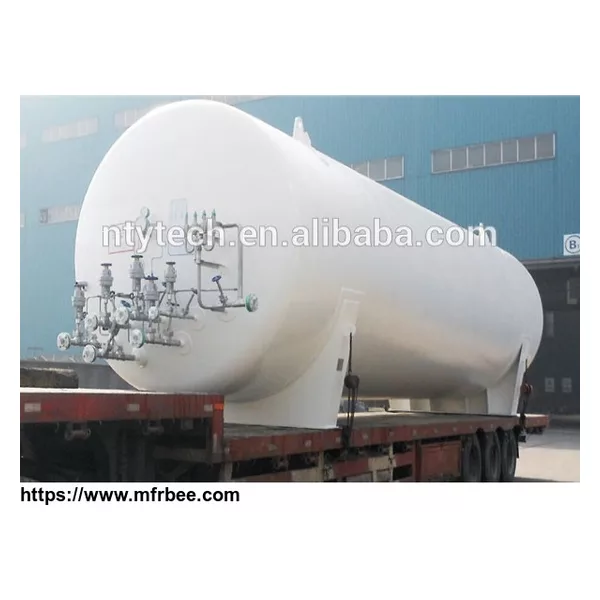

60M3 Capacity Cryogenic Liquid StorageTank Container

FOB Price
80000~120000
Place Of Origin
China (Mainland)
Capacity
60M3
Model Number
HN60/1.2-GB
Weight
25560KG
Warranty
1 year
Minimum Order
1
Condition
New
Brand Name
New Tianyuan
Dimension(L*W*H)
13100*3020*3375MM
Certificatio
: CSC,IMDG,RID,TIR,TC
Packaging
nude packing
Delivery
45 Days

60M3 Capacity Cryogenic Liquid StorageTank Container

Full capacity: 60M3
Effective capacity: 54M3
Max. working pressure: 1.2MPa
Outer dimension: 13100*3020*3375MM
Weight: 25560KG
Evaporation rate: (LIN)0.31%/d
Gas supply: /
Insulation method: Pearlife

Our cryogenic tanks conform to GB150, GB18442 standard and ASME standard, are suitable for liquefied natural gas (LNG) etc. cryogenic liquid storage and application. Different volumes of tanks are available, and the maximum allowable working pressure is 0.8MPa and 1.2MPa.

We adopt advanced vacuum acquisition and maintenance technology to guarantee good insulation performance, long vacuum holding time and low maintenance cost.

External pipelines adopt modular design and prefabrication, which can be more compact and concise, and the user can get more reliable system, more convenient installation, maintenance and lower maintenance costs.

It passes CCS attestation and can meet international marine requirements with certificate issued by International Classification Society according to user’ demand.
