Part Number Nominal Input Voltage Output Voltage Output Current (Max./Min) Efficiency
V V mA %
TPET0303 3.3 3.3 303/30.3
72
TPET0305 3.3 5 201/20.1
77
TPET0309 3.3 9 111/11.1
77
TPET0312 3.3 12 83/8.3
77
TPET0315 3.3 15 67/6.7
77
TPET0503 5 3.3 303/30.3
74
TPET0505 5 5 200/20
69
TPET0509 5 9 111/11.1
75
TPET0512 5 12 84/8.4
78
TPET0515 5 15 66/6.6
78
TPET1203 12 3.3 303/30.3 74
TPET1205 12 5 200/20
67
TPET1209 12 9 111/11.1
73
TPET1212 12 12 83/8.3
74
TPET1215 12 15 66/6.6
75
TPET1505 15 5 201/20.1
77
TPET1515 15 15 66/6.6
75
RoHS compliant、CE certification Efficiency up to 78% Single isolated output
3KVDC isolation Custom solutions available Power density 1.8W/cm3
UL 94V-0 package material Footprint over pins 1.37cm2 Operating temperature: -40℃to 105℃
Input voltage: 3.3V, 5V,12V,15V,24V Output voltage:3.3V, 5V, 9V, 12V,15V /
Add suffix “P” for continuous short circuit protection, for example TPET0505P. Add suffix “X” has not 5,10,12 pin, for example TPET0505X.

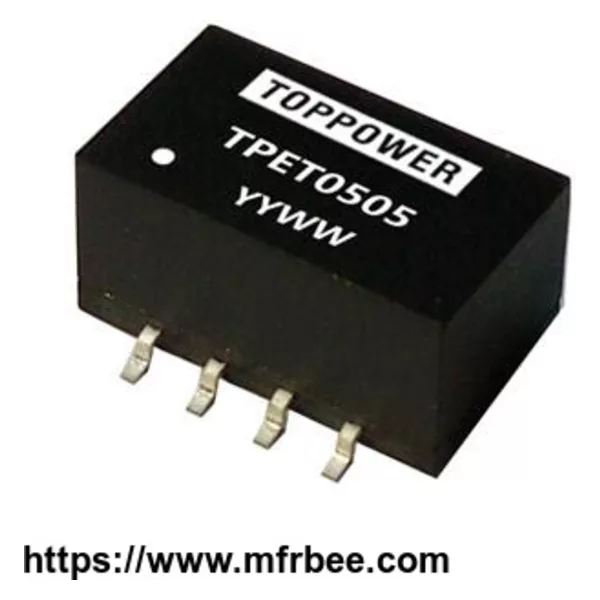

Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power
systems is required. these converters are qualified for the higher temperatures requested by lead-free reflow solder processes, especially for automated SMD production lines.
