Penta Prism
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

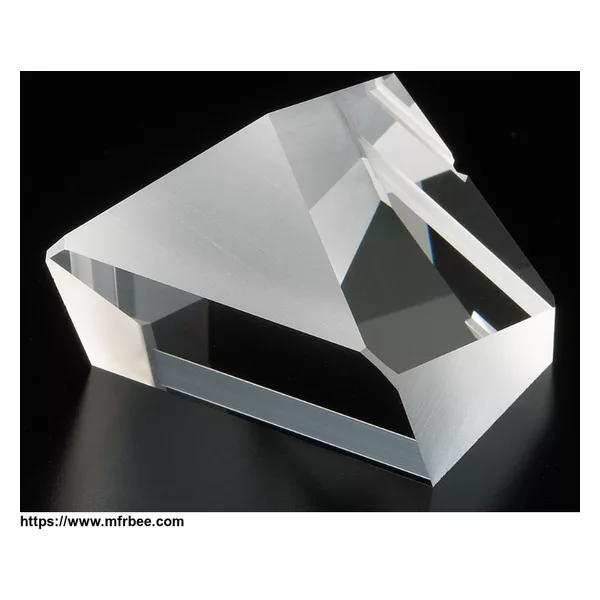

Penta Prisms are used to define right angles in optical systems. Penta Prisms, which provide right handed images, feature a ray deviation of 90°. Penta Prisms are five-sided prisms and unaffected by slight movements. Edmund Optics offers a variety of Penta Prisms for optimal performance in the Ultraviolet (UV), Visible, or Infrared (IR) spectrums.
Thepenta prismwill neither invert nor reverse the image. Penta prisms are extremely useful in alignment systems as they define a right angle very precisely and independently of angle of incidence. Rays entering one face emerge from the adjacent face at precisely 90 deg after they have undergone two reflections inside the prism for a total of 270 deg. The penta prism acts as a turning mirror which is insensitive to alignment.
Penta prism is often used in Plumb Level, Surveying, Alignment, Range finding and Optical Tooling
Factory Standard – Contact us for manufacturing limit or custom specifications
- Material: BK7 Grade A optical glass, Corning Fused Silica 7980, JGS1, JGS2
- Dimension Tolerance: +/-0.1mm
- 90 Deviation Tolerance:
Precision series: up to 2 arc seconds
- Flatness: Precision series: 1/4 at 632.8 nm
- Reflectivity: R > 95% per face from 630 to 680 nm
- Surface Quality: 60-40 scratch and dig
- Coating: On request
- Protective Bevel available
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2016
- Address:
- Contact:Boxin Li
