Combustion Calorimeter of Building Material Gbt1440

Place Of Origin
chongqing
Minimum Order
1
Model
GBT1440
Packaging
plywood
Delivery
15 Days
Introduction:

combustion of materials is important characterize parameters to calculated building materials release heat and fire basic data. The tester is one of the devices is designed according to ISO1716-2002

International standards:
1. GBT1440
2. ISO1716-2002

Features:

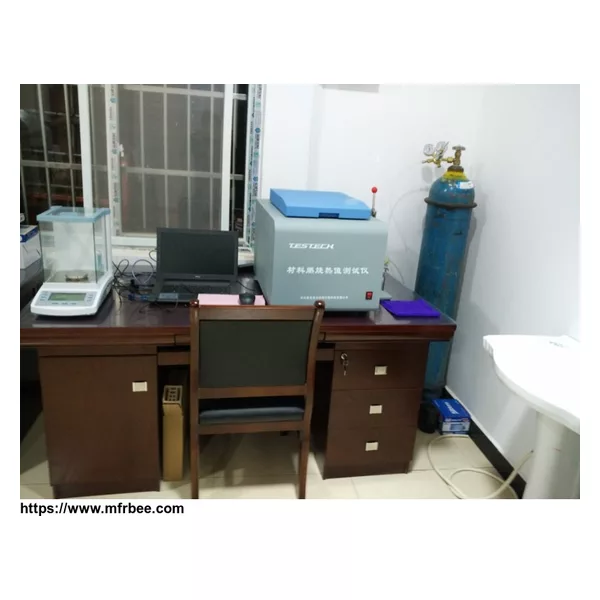

1, The apparatus including: calorimeter apparatus, high-pressure oxygen bomb, cold water installations, computer and control system (which can record and display the curve), LCD screen and software;

Crucible made of stainless steel;

2, Box paint treatment; all internal parts are made of stainless steel, corrosion-resistant, easy to clean;

3, Ignition wire break is detection, and automatic ignition.

4, The test procedure automatically turn off.

5, Test abnormalities has sound alarm.

6, Computer control system:

7, Control box with USB / RS232 serial port with an external brand desktop or laptop operating control; High degree of automation, test procedure safe and reliable, easy to operate

Specification:

Bomb capacity: (300 ± 50) mL.
Timer: accuracy of 0.5s
Maximum power: 0.5KW
Temperature range: (4.5-50) ºC
Heat repeatability error ≤0.2%
Control way computer system
