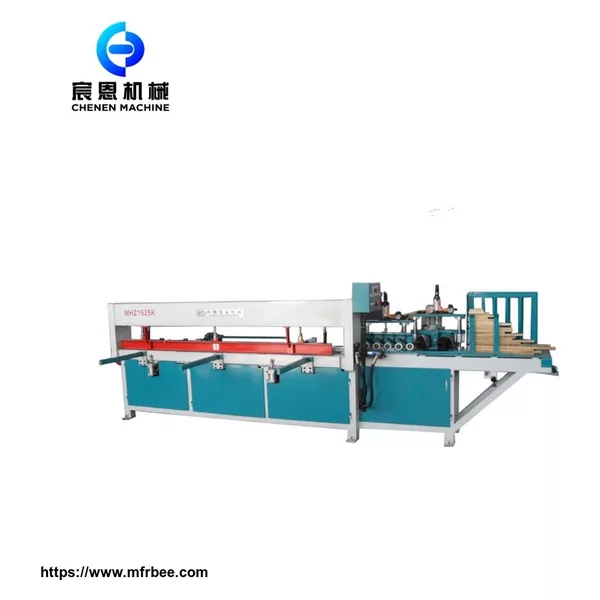

finget joint machine

1 brief introduce

The automatic finger press is used for joint the same width , thickness,length wood into long board.

put the glued wood into the infeed box, them the machine in feed aromatically.

‚cut the length in your requirement

2 advantage

high speed, 600-800 piece/hour

use the mini computer control, easy to operate and save labor

high working efficiency

3 specification
max assembly length is 2500mm

Max assembly width is 40-150mm

Max assembly thickness 12-45mm

Max jointing force is 3000kg

Saw blade diameter is 300mm

Total power is 5.7kw

Saw motor power is 2.2kw

Oil pump power is 2.2kw

Feed motor power is 0.75+0.55kw

Size is 4150x1120x1420mm
