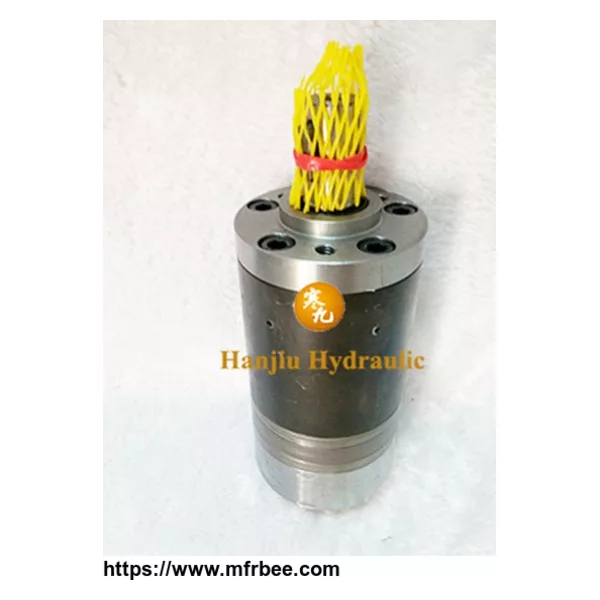

BMM Hydraulic Orbit Motors
Product Quick Detail
- FOB Price
- USD $65.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- wooden case or others
- Delivery
- 15 Days
Specifications
BMM series motor
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
|
Max Torque (N*M) |
rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
|
Max speed (kw) |
rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
|
Max pressure drop(MPa) |
rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
* Continuous pressure:Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| Basic Info. | |
| Attribute | Attribute value |
| Model NO | BMM |
| Power | Hydraulic |
| Export Markets | Global |
| Structure | Hydraulic motor,orbital hydraulic motor |
| Material | Cast iron |
| OEM | Accept |
Substitute Reference substance
| MOTOR CROSS REFERENCE TABLE | ||||||||
|
HANJIU HYDRAULIC |
M+S HYDRAULIC |
EATON CHAR LYNN |
DANFOSS |
ROSS TRW |
WHITE CROSS |
PARKER |
SAM BREVINI |
BOSCH RECROTH |
| BMM | MM MLHK | J SERIES | OMM |
|
|
|
BGM | MGX |
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF |
|
OMH | ME | RE | TG |
|
|
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ |
|
|
HT | MGT,GMT |
| BMV | MV MLHV | 10000 SERIES | OMV |
|
|
|
|
MGV GMV |
Hydraulic orbit motor applications:
Brush cutters
Mower
Haveresting equipment
Forestry equipment
Turf equipment
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:European Union,Africa,Middle East,Oceania
- Founded Year:2010
- Address:15A-07,Zhongyuan building, Youyi street,Shijiazhuang city,China
- Contact:Jamin Du
