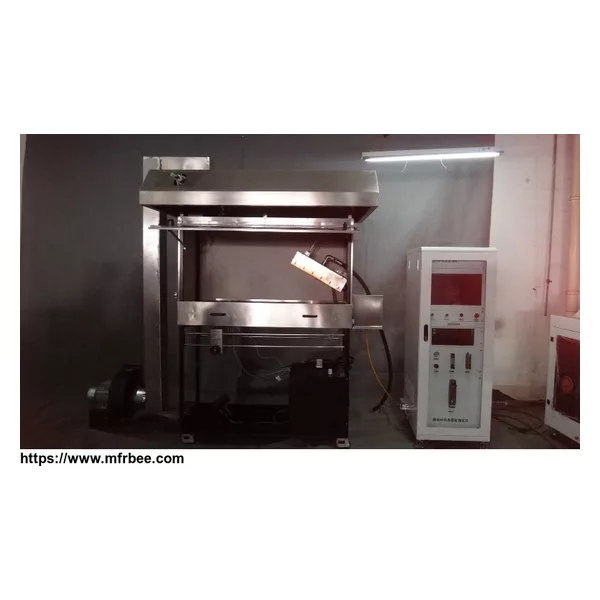

Flooring Radiant Panel Tester ISO9239-1 Gbt11785

Place Of Origin
chongqing
Weight
350KG
Minimum Order
1
Size
1.4*1.0*2.2m
Model
Gd-11785
Packaging
1pcs
Delivery
15 Days
Introduction:

Critical Radiant Flux of the main parameters of flooring materials evaluate the fire risk, and it characterizes the flooring material samples subjected to conditions at the thermal radiation from outside flame.

According ISO9239-1,2 requirements, and flooring heat radiating plate test is in the chamber, through a certain heat radiation environment, measure critical radiant floor coverings Combustion case value. Radiation can also be used to measure the critical value of attic floor cellulose insulation material.


International standards:
1. GBT11785
2. ISO9239
3. ASTM648
4. NFPA235

Features:

1, All structural components are made of stainless steel, nice appearance, corrosion resistance;

2, The radiation source is a porous ceramic heat radiating plate 300mmX450mm, tilted 30 °;

3, Imported calorimeter from US Medtherm company, range 50KW /m;

4, Igniters diameter of 0.7mm from the bottom of the center line of each 60-degree position according to standard request.

5, The standard plate is made of thick 20 ± 1mm, density 850 ± 100kg / m³ without coating made of calcium silicate board; size 1050X250mm

6, Small stainless steel auxiliary ignition burner ignited sample.

7, Imported flow control meter from Japan, precise control of the flow of propane

8, Equipped with air blower providing air, mixed gas through the venturi mixing test gas,

9, The specimen holder is made of stainless steel and an overall dimension of 1140mm x 320 mm.


specification

Size (Length1.4× width1.0× High2.2)m;Control box: 600(W)×750(D)×1600(H)mm
Power AC220V±10%, 50Hz;5KW;
Weight 350KG
Model GD11785
