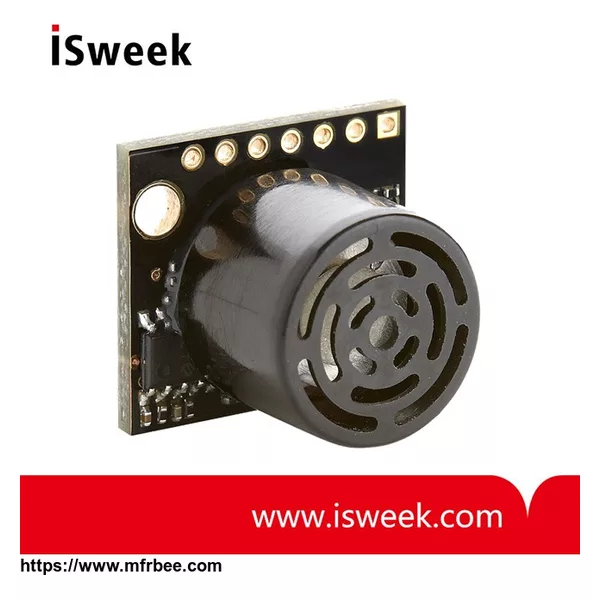

MB1003 HRLV-MaxSonar-EZ0 High Performance Ultrasonic Rangefinder
Product Quick Detail
- Brand Name
- MaxBotix Inc.
- Minimum Order
- 1
- Place Of Origin
- United States
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
MB1003 HRLV-MaxSonar-EZ0
High Performance Ultrasonic Rangefinder
High Performance Ultrasonic Rangefinder
MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Product Description
The HRLV‑MaxSonar‑EZ0 has the widest and most sensitive beam pattern of any unit from HRLV‑MaxSonar‑EZ sensor line. This makes the HRLV‑MaxSonar‑EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.
The HRLV‑MaxSonar‑EZ0 has the widest and most sensitive beam pattern of any unit from HRLV‑MaxSonar‑EZ sensor line. This makes the HRLV‑MaxSonar‑EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.
MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Product Specifiations
• Resolution of 1‑mm
• 10Hz reading rate
• Internal temperature compensation
• Cost-effective solution where precision range-findings are needed
• Sensor component allows users to lower the cost of their systems without sacrificing performance
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS compliant
• Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
• Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
• Maximum range of 5000 mm (195 inches)
• Tolerates outside noise sources
• Operates from 2.5V-5.5V
• Low 3.1mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Operational Temperature from 0˚C to +65˚C (+32˚F to +149˚F)
• Real-time automatic calibration (voltage, humidity, ambient noise)
• Option external temperature compensation HR‑MaxTemp
• Firmware filtering for better noise tolerance and clutter rejection
• Widest beam of the HRLV-MaxSonar-EZ sensors
• Great for people detection applications
• Resolution of 1‑mm
• 10Hz reading rate
• Internal temperature compensation
• Cost-effective solution where precision range-findings are needed
• Sensor component allows users to lower the cost of their systems without sacrificing performance
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS compliant
• Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
• Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
• Maximum range of 5000 mm (195 inches)
• Tolerates outside noise sources
• Operates from 2.5V-5.5V
• Low 3.1mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Operational Temperature from 0˚C to +65˚C (+32˚F to +149˚F)
• Real-time automatic calibration (voltage, humidity, ambient noise)
• Option external temperature compensation HR‑MaxTemp
• Firmware filtering for better noise tolerance and clutter rejection
• Widest beam of the HRLV-MaxSonar-EZ sensors
• Great for people detection applications
MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Features and Benefits
• Factory calibrated wide beam width
• Low operating voltages from 2.5V to 5.5V
• All range outputs are active simultaneously
• High acoustic sensitivity
• Detects small targets to longer distances
• Widest beam width for the HRLV-MaxSonar-EZ sensors
• Factory calibrated wide beam width
• Low operating voltages from 2.5V to 5.5V
• All range outputs are active simultaneously
• High acoustic sensitivity
• Detects small targets to longer distances
• Widest beam width for the HRLV-MaxSonar-EZ sensors
MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Applications and Uses
• People detection
• Small target detection
• High sensitivity applications
• Obstacle avoidance
• People detection
• Small target detection
• High sensitivity applications
• Obstacle avoidance
MB1003 HRLV-MaxSonar-EZ0 Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
