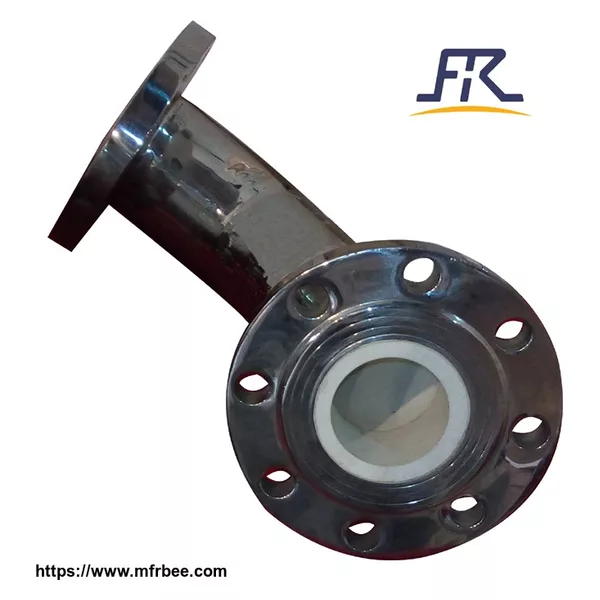

Ceramic Lined Composite Pipe and Ceramic Elbow
Product Quick Detail
- Price Terms
- FOB/CIF
- Size Range
- DN50~DN 300, NPS2 ~NPS12
- FOB Price
- USD $300.00 / Piece
- Payment Terms
- TT,LC
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 30 Days
Specifications
Ceramic Lined CompositePipe and Ceramic Elbow
FREE-Valve’sCeramic Lined CompositePipe and Ceramic Elbow include elbow, short section ,Tee joint ,reducer etc ,which are widely used in the powder of pneumatic conveying and pumping conveying . Due to the large abrasives , high hardness ,high speed ,large flow rate of medium ,the ceramic ring lined composite pipes can greatly prolong the speed of pipes wear out .
Features
1. Ceramic lined steel pipe has strong wear resistance performance and anti
-erosion capacity.
2.With Smooth inner wall, will not blocked by the powder medium .
3.Good anti-abrasive performance ,longer working life time
Technical Specification
| The standards of flange ends | ASME B16.5,GB/T9113 |
| Nominal Pressure | 1.0MPa,Class150 |
| SizeRange | DN50~DN 300, NPS2~NPS12 |
| Connection type | Flange/ Welding |
| Working Temperature | ≤200℃ |
| Pipe material | Engineering ceramic+ Steel |
Application:
1. Slag draining, ash removal, powder feeding and back powder systems in power plants.
2. Iron alloy conveying of steel-making, slag conveying pipeline, external refining and so on in steel plant.
3. LiCoO2 powder ,raw slurry conveying in cement plant, coal powder conveying, concrete conveying pipe.
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:Asia,Middle East,Americas,Africa,Oceania
- Founded Year:
- Address:No.93 Zizhu Road, High-Tech Development Zone
- Contact:David Li
