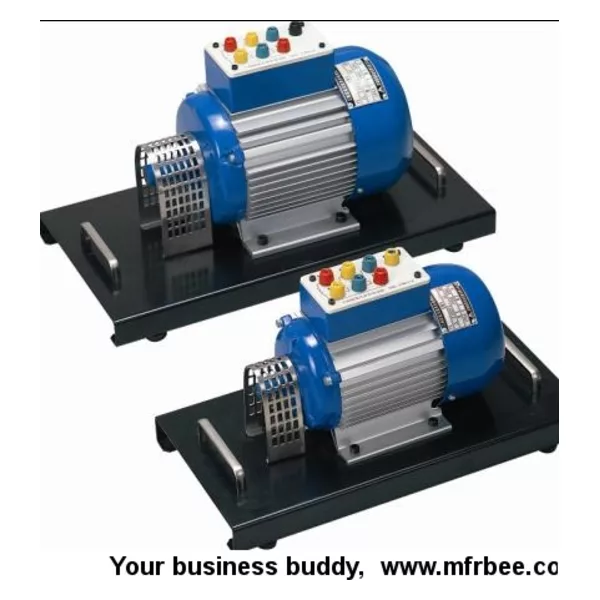

ZME114 Three-phase Asynchronous Motor

Packaging
N/A
Delivery
30 Days
ZME114 three-phase asynchronous motor base is 2.5mm thickness steel plate,black spray-paint.4 pcs shockproof pad in the bottom.Having safety experiment terminal,it is easy to change Y or triangle shape.It has USA military standard safety test line 6 slips.
Technical information:
1.Rated power:PN=0.25KW.
2.Rated voltage:UN=380V.
3.Rated frequency:FN=50Hz.
4.Rated current:IN=0.83A.
5.Insulation grade:class E.
6.Shell protection grade:IP44.
7.Rated speed:1400r/min.
8.Pole number:4.
9.Cosphi =0.7(no load).
10.The insulation resistance of normal motor: 500M.
11.Electrical strength: hot or after temperature rise test,1760V is applied between the motor windings and casing.
12.No breakdown voltage for 1m.
13.Electrical clearance and creepage distance:more than 3.0mm.
