Aluminium Conductor Steel Reinforced(ACSR)
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China (Mainland)
- Packaging
- with wooden drum or as your request
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:feiniu
- Place of Origin:China
- Model Number :08
- Application :Industrial
- Conductor Material :Aluminum
- Insulation Material :PVC
- Jacket :PVC
- Type :Low Voltage
Description
Aluminium Conductor Steel Reinforced(ACSR)
| No. | Nominal sectional | Structure, Piece/ diameter | Paper presents calculation sections | Outside diameter | DC resistance is not greater than | Breaking force | Weight | Delivery length is not less than | |||
| Steel/ Aluminum | m㎡ | m㎡ | |||||||||
| m㎡ | Aluminum | Steel | Aluminum | Steel | Sum | mm | Ω/km | N | kg/km | m | |
| 1 | 25/4 | 6/2.32 | 1/2.32 | 25.36 | 4.23 | 29.59 | 6.96 | 1.1313 | 9290 | 102.6 | 3000 |
| 2 | 35/6 | 6/2.72 | 1/2.72 | 34.86 | 5.81 | 40.67 | 8.16 | 0.8230 | 12630 | 141.0 | 3000 |
| 3 | 50/8 | 6/3.20 | 1/3.20 | 48.25 | 8.04 | 56.29 | 9.60 | 0.5946 | 16870 | 195.1 | 2000 |
| 4 | 70/10 | 6/3.80 | 1/3.80 | 68.05 | 11.34 | 79.39 | 11.40 | 0.4217 | 23390 | 275.2 | 2000 |
| 5 | 50/30 | 12/2.32 | 7/2.32 | 50.73 | 29.59 | 80.32 | 11.60 | 0.5692 | 42620 | 372.0 | 3000 |
| 6 | 70/40 | 12/2.72 | 7/2.72 | 69.73 | 40.67 | 110.40 | 13.60 | 0.4141 | 58300 | 511.3 | 2000 |
| 7 | 95/15 | 26/2.15 | 7/1.67 | 94.36 | 15.33 | 109.72 | 13.61 | 0.3058 | 15000 | 380.8 | 2000 |
| 8 | 95/20 | 7/4.16 | 7/1.85 | 95.14 | 18.82 | 113.96 | 13.87 | 0.3019 | 37200 | 408.9 | 2000 |
| 9 | 95/55 | 12/3.20 | 7/3.20 | 96.51 | 56.30 | 152.81 | 16.00 | 0.2992 | 78110 | 707.7 | 2000 |
| 10 | 120/7 | 18/2.90 | 1/2.90 | 118.89 | 6.61 | 125.50 | 14.50 | 0.2422 | 27570 | 379.0 | 2000 |
| 11 | 120/20 | 26/2.38 | 7/1.85 | 115.67 | 18.82 | 134.49 | 15.07 | 0.2496 | 41000 | 466.8 | 2000 |
| 12 | 120/25 | 7/4.72 | 7/2.10 | 122.48 | 24.25 | 146.73 | 15.74 | 0.2345 | 47880 | 526.6 | 2000 |
| 13 | 120/70 | 12/3.60 | 7/3.60 | 122.15 | 71.25 | 193.40 | 18.00 | 0.2364 | 98370 | 895.6 | 2000 |
| 14 | 150/8 | 18/3.20 | 1/3.20 | 144.76 | 8.04 | 152.80 | 16.00 | 0.1989 | 32860 | 461.4 | 2000 |
| 15 | 150/20 | 24/2.78 | 7/1.85 | 145.68 | 18.82 | 164.50 | 16.67 | 0.1980 | 46630 | 549.4 | 2000 |
| 16 | 150/25 | 26/2.70 | 7/2.10 | 148.86 | 24.25 | 173.11 | 17.10 | 0.1939 | 54110 | 601.0 | 2000 |
| 17 | 150/35 | 30/2.50 | 7/2.50 | 147.26 | 34.36 | 181.62 | 17.50 | 0.1962 | 65020 | 676.2 | 2000 |
| 18 | 185/10 | 18/3.60 | 1/3.60 | 183.22 | 10.18 | 193.40 | 18.00 | 0.1572 | 40880 | 584.0 | 2000 |
| 19 | 185/25 | 24/3.15 | 7/2.10 | 187.04 | 24.25 | 211.29 | 18.90 | 0.1542 | 59420 | 706.1 | 2000 |
| 20 | 185/30 | 26/2.98 | 7/2.32 | 181.34 | 29.59 | 210.93 | 18.88 | 0.1592 | 64320 | 732.6 | 2000 |
| 21 | 185/45 | 30/2.80 | 7/2.80 | 184.73 | 43.10 | 227.83 | 19.60 | 0.1564 | 80190 | 848.2 | 2000 |
| 22 | 210/10 | 18/3.80 | 1/3.80 | 204.14 | 11.34 | 215.48 | 19.00 | 0.1411 | 45140 | 650.7 | 2000 |
| 23 | 210/25 | 24/3.33 | 7/2.22 | 209.02 | 27.10 | 236.12 | 19.98 | 0.1380 | 65990 | 789.1 | 2000 |
| 24 | 210/35 | 26/3.22 | 7/2.50 | 211.73 | 34.36 | 246.09 | 20.38 | 0.1363 | 74250 | 853.9 | 2000 |
| 25 | 210/50 | 30/2.98 | 7/2.98 | 209.24 | 48.82 | 258.06 | 20.86 | 0.1381 | 90830 | 960.8 | 2000 |
| 26 | 240/30 | 24/3.60 | 7/2.40 | 244.29 | 31.67 | 275.96 | 21.60 | 0.1181 | 75620 | 922.2 | 2000 |
| 27 | 240/40 | 26/3.42 | 7/2.66 | 238.85 | 38.90 | 277.75 | 21.66 | 0.1209 | 83370 | 964.3 | 2000 |
| 28 | 240/55 | 30/3.20 | 7/3.20 | 241.27 | 56.30 | 297.57 | 22.40 | 0.1198 | 102100 | 1108 | 2000 |
| 29 | 300/15 | 42/3.00 | 7/1.67 | 296.88 | 15.33 | 312.21 | 23.01 | 0.09724 | 68060 | 939.8 | 2000 |
| 30 | 300/20 | 45/2.93 | 7/1.95 | 303.42 | 20.91 | 324.33 | 23.43 | 0.09520 | 75680 | 1002 | 2000 |
| 31 | 300/25 | 48/2.85 | 7/2.22 | 306.21 | 27.10 | 333.31 | 23.76 | 0.09433 | 83410 | 1058 | 2000 |
| 32 | 300/40 | 24/3.99 | 7/2.66 | 300.09 | 38.90 | 338.99 | 23.94 | 0.09614 | 92220 | 1133 | 2000 |
| 33 | 300/50 | 26/3.83 | 7/2.98 | 299.54 | 48.82 | 348.36 | 24.26 | 0.09636 | 103400 | 1210 | 2000 |
| 34 | 300/70 | 30/3.60 | 7/3.60 | 305.36 | 71.25 | 376.61 | 25.20 | 0.09463 | 128000 | 1402 | 2000 |
| 35 | 400/20 | 42/3.51 | 7/1.95 | 406.40 | 20.91 | 427.31 | 26.91 | 0.07104 | 88850 | 1286 | 1500 |
| 36 | 400/25 | 45/3.33 | 7/2.22 | 391.91 | 27.10 | 419.01 | 26.64 | 0.07370 | 95940 | 1295 | 1500 |
| 37 | 400/35 | 48/3.22 | 7/2.50 | 390.88 | 34.36 | 425.24 | 26.82 | 0.07389 | 103900 | 1349 | 1500 |
| 38 | 400/50 | 54/3.07 | 7/3.07 | 399.73 | 51.82 | 451.55 | 27.63 | 0.07232 | 123400 | 1511 | 1500 |
| 39 | 400/65 | 26/4.42 | 7/3.44 | 398.94 | 65.06 | 464.00 | 28.00 | 0.07236 | 135200 | 1611 | 1500 |
| 40 | 400/95 | 30/4.16 | 19/2.50 | 407.75 | 93.27 | 501.02 | 29.14 | 0.07087 | 171300 | 1860 | 1500 |
Packaging & Delivery
- Packing :with wooden drum or as your request
- Delivery Lead Time :15 days

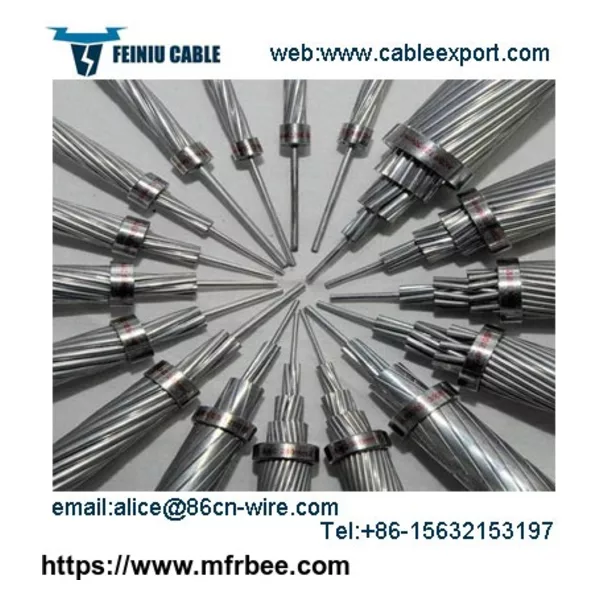

Product Image
- Country: China (Mainland)
- Business Type: cable
- Market:Americas,Middle East
- Founded Year:2015
- Address:
- Contact:Lingfei Kong
