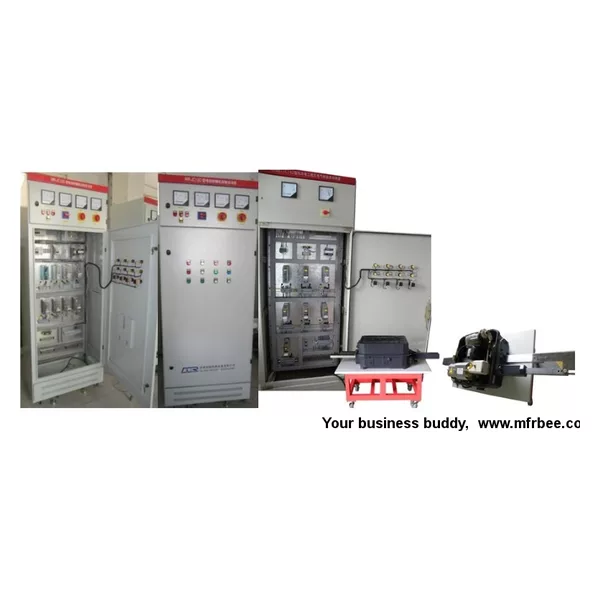

ZME12D Control Circuit of Railway Switch Machine Training Equipment

ZME12D control circuit of railway switch machine training equipment is designed for students of rail transit specialities to do electrical control training switch machine experiment.

Technical information:

1.Size:800X600X2200mm(LxWxH).

2.Power supply:three-phase five wires AC380V±5%,50Hz.

3.Safe protection:grounding protection,electric leakage protection,short circuit protection.

4.DC power output:AC380V/5A,AC220V/5A,AC110V/1A.

5.AC power output:AC220V/5A.

6.Product configuration:control power supply,power said,DC power supply,DB,FB,HD instructions, the relevant state display,voltage,current measurement circuit.

7.Configuration component:DBQ,BHJ,1DQJ,1DQJF,2DQJ,DBJ,FBJ,QDJ,SJ,RC.

8.Working temperature: -10°C-40°C.

9.Relative humidity:20%-90%.
