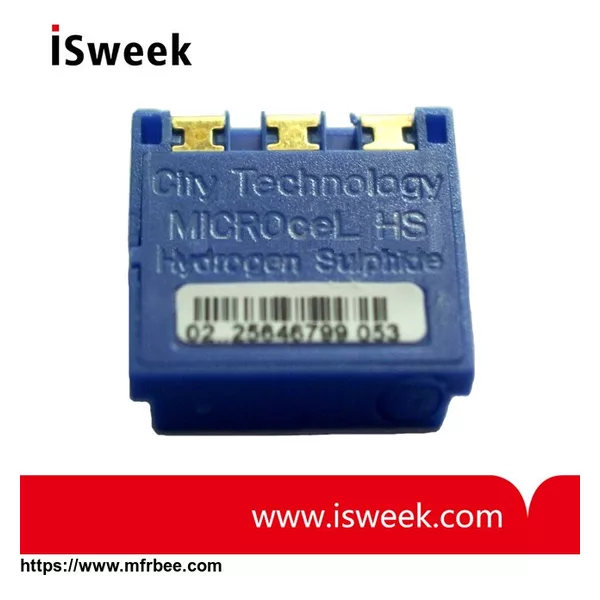

MICROceL HS Hydrogen Sulfide Sensor(H2S Sensor) Description
MICRO 3-electrode hydrogen sulphide sensor
MICROceL HS Hydrogen Sulfide Sensor (H2S Sensor) Key Features & Benefits
• A robust hydrogen sulfide sensor suitable for portable life safety applications
• Extremely small size
MICROceL HS Hydrogen Sulfide Sensor (H2S Sensor) Technical Specifications
MEASUREMENT |
|
Operating Principle |
3-electrode electrochemical |
Measurement Range |
0-100 ppm H2S |
Maximum Overload |
1000 ppm H2S |
Filter |
To remove TLV levels of interfering gases |
Sensitivity* |
0.105 ± 0.025 µA/ppm |
T50 Response Time* |
<10 Seconds at 20°C |
Typical T90 Response Time |
25 to 40 seconds |
Baseline Offset (clean air)* |
-2 to +1 ppm H2S equivalent |
Maximum Zero Shift* (+20°C to +40°C) |
<0.2 ppm H2S equivalent |
Linearity |
Linear up to 1000 ppm H2S |
|
|
ELECTRICAL |
|
Recommended Load Resistor |
10 Ω |
Bias Voltage |
Not Required |
|
|
MECHANICAL |
|
Weight |
1.2 g |
Housing Material |
ABS |
Orientation |
Any |
|
|
ENVIRONMENTAL |
|
Operating Temperature Range |
-40°C to +50°C |
Recommended Storage Temp |
0°C to 20°C |
Operating Pressure Range |
Atmospheric ± 10% |
Operating Humidity Range |
15 - 90% RH non-condensing |
|
|
LIFETIME |
|
Expected Operating Life |
Two years in air |
Long Term Output Drift |
<5% signal loss per year |
Storage Life |
6 months in CTL container |
