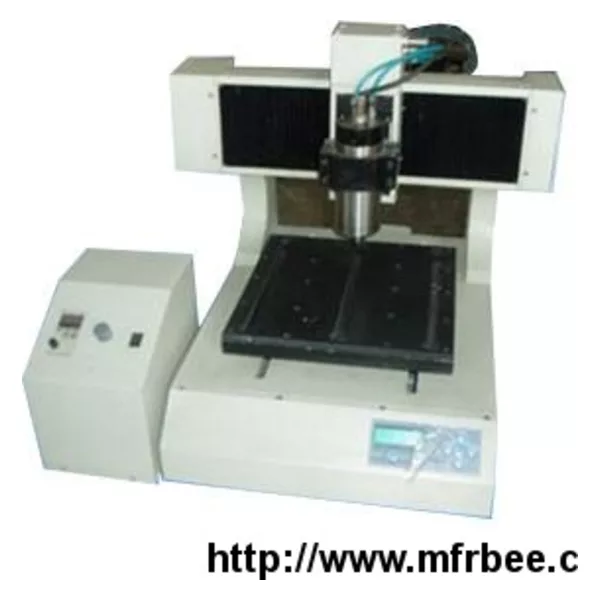

ZM3030 Circuit Board Engraving Machine

Technical information of ZM3030 circuit board engraving machine:

1.High speed DSP chip control.

2.A computer control more than two engraving machine.

3.USB interface.

4.PCB file storage method:PCBGerber.

5.Applicable software Protel99.

6.Actual operation interface design line blue, yellow red hole machining path,respectively.

7.Line isolation function.

8.Isolation width setting function.

9.Virtual machining demonstration function.

10.Local hollow function.

11.HTTP functions.

12.Rapid engraving function,combined tools.

13.Power-off memory function.

14.More than 1.0 specification hole milling function.

15.Drilling speed:100 holes/minute.

16.Multi-layer circuit drilling function.

17.Single/double-sided board processing panel.

18.Max.processing board:350×300mm.

19.Min. diameter:4mil.

20.Min. processing line spacing:6mil.

21.Hole size:0.35-3.5mm.

22.Drilling depth:0.2-4mm.

23.Min.step distance 0.003125mm.

24.Speed:0- 4.8 m/min.

25.Configuration:a host,15 bit (branch),carving knife 15pcs,fastener 4,cleaner 1,circulating water tank 1,wrench 2,CD 1,1 specification,a USB connecting line,circuit board 10 block.
