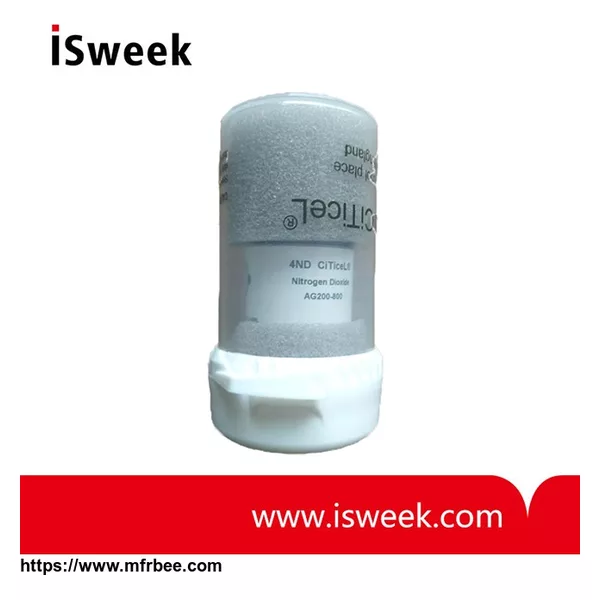

4ND CiTiceL Nitrogen Dioxide SensorKey Features & Benefits
• Industry leading reliability
• Improved performance variability
4ND CiTiceL Nitrogen Dioxide Sensor Application
Industrial Safety: Sensors for portable gas detectors used in Industrial Hygiene and Confined Space Entry.
4ND CiTiceL Nitrogen Dioxide Sensor Performance Characteristics
Nominal Range |
0-20 ppm |
Maximum Overload |
150 ppm |
Expected Operating Life |
Two years in air |
Output Signal |
0.6 ± 0.15 µA/ppm |
Resolution |
0.1 ppm |
Temperature Range |
-20°C to +50°C |
Pressure Range |
Atmospheric ± 10% |
T90 Response Time |
<25 seconds |
Relative Humidity Range |
15 to 90% non-condensing |
Typical Baseline Range (pure air) |
-0.2 to +0.2 ppm equivalent |
Maximum Zero Shift (+20°C to +40°C) |
0.2 ppm equivalent |
Long Term Output Drift |
<2% signal loss/month |
Recommended Load Resistor |
33 Ω |
Bias Voltage |
Not required |
Repeatability |
<2% of signal |
Output Linearity |
Linear |
Weight |
5 g (approx.) |
Position Sensitivity |
None |
Storage Life |
Six months in CTL container |
Recommended Storage Temperature |
0-20°C |
Warranty Period |
12 months from date of despatch |
