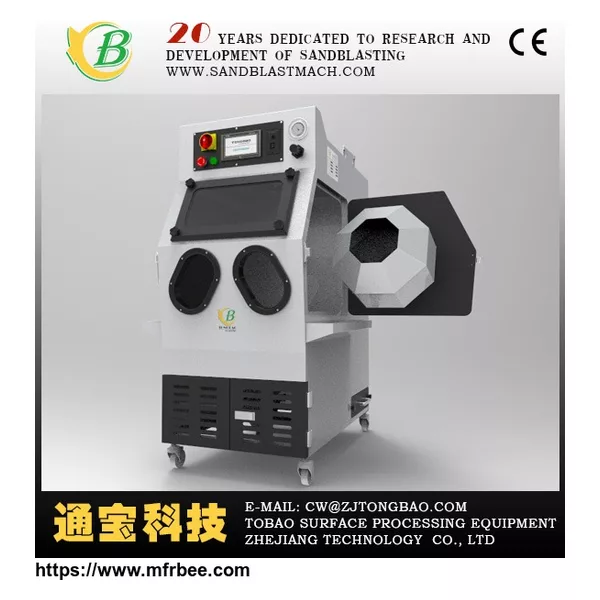

Rotary drum blasting machine/automatic sandblasting machine

rotary drum type machine automatic functions: automatic going up and down of spray guns, automatic sandblasting, blowing, removal dust, timing, stopping, lighting warning.

The rotary speed of roller can be adjusted, preventing workpiece collision.

The type, hole size, load-bearing can be customized according to the size of workpiece.

It adopts cyclone separator and the operation condition is confined. The sand materials are recovered automatically, improve the usage rate.

The window is made of tempered glass, and there is a piece of ordinary glass, which has clear vision and is easy to change.

This type machine’s working efficiency is 15 times higher than siphon type sand blasting machine.

There are two types of door: front door and side door. The spray guns can be used simultaneously or alone, and the manual or automatic types are available. All those can be customized according to customer’s request.

Envelop dimensions(mm):about 1120×800×1320

Roller size(mm):ф400×300

Nozzle diameter(mm):6.8 or 10

Roller load(kg):≤8

Roller speed(r/min):7.5

Nozzle number(n):1

Roller shape:Anise type

Machine floodlight:13WEnergy-saving lamps

power:380/220V,50HZ,about1.5KW

Compressed air pressure source(mpa):0.4-0.8

Compressed air source gas consumption:≥0.8m³/min
