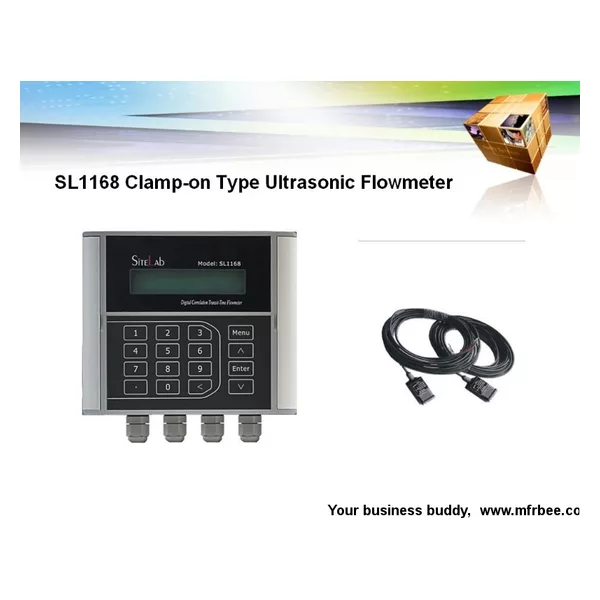

SL1168 Digital Correlation Transit Time Flowmeter
Installation method: wall mount
Transmitter:
Flow Range: 0 ~ ±16ft/s (0 ~ ±5m/s)
Accuracy: ±1.0% (±1.6ft/s~±16ft/s) (±0.5m/s~±5m/s)
Repeatability: 0.3%
Pipe Size Range:1”~30” (25mm ~ 1200mm)
Keyboard:16 (4×4) touch keys
Display: 20×2, alphanumeric, backlit LCD
Power supply: 10-36V DC@1Amax
Transmitter enclosure: IP65, ABS/PC enclosure
Temperature:-20℃~50℃
Output: OCT pulse output 0-10KHz, Relay output, 4-20mA optional
Communication: RS232, Modbus Protocol
Temperature. -40℉~+140℉ (-40℃~60℃)
