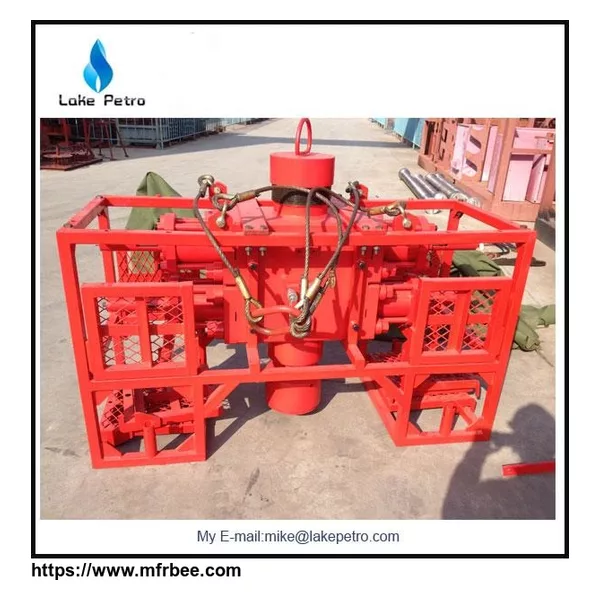

wireline BOP

Lubricator & riser sections are pressure retaining cylinders used during well intervention operations, for tool deployment. Sections can be made-up together with an appropriate sealing device, to form an effectual operating height to retain the tool string complete with sub-surface deployment tool(s) being run or Retrieved from the well.

options

The TIS lubricator and riser section range is available with the following options :

• 3.00”ID to 9.00” ID through bores
• 3ft to 20ft length options
• 5,000 Psi, 10,000 Psi and 15,000 Psi working pressures
• Standard or sour service
• Service temperature range of -29 to +121 °C
• Choice of quick union or API flanged connections
• Choice of bleed port connections

Technical Features

• On conventional lubricators, the component parts are screwed together by means of a special TIS acme connection, which has a primary o-ring seal and secondary metal to metal seal
• On integral type lubricators, the quick union collars can be very quickly and easily removed for cleaning, inspection, etc
• Integral lubricator sections can also be provided with an optional full re-cut facility on quick union connections
