DS MLB (BML) Bridge drainage pipe is has typical properties of resisting acidic waste gas, road salt mist, etc. suit-able for special requirements in the field of bridge construction,roads, tunnels with its typical resistance of acid exhaust fumes,road salt etc. Furthermore, MLB also can be used for underground installation.
The material is cast iron with flake graphite as per EN 1561, at least EN-GJL-150. The inside coating of DS MLB fully meet EN 877; the outside coating corresponds to ZTV-ING part 4 steel construction, annex A,table A 4.3.2, construction part no. 3.3.3. The nominal dimensions range from DN 100 to DN 500 or 600,length 3000mm.
BML Pipe | Inside:Fully cross-linked epoxy thickness min. 120 µm Outside: Two-layer thermal spraying zinc coating min.40µm,+cover two-components epoxy coating min.80 µm silvery gray (Color RAL 7001 ) |
BML Fittings | Inside and outside: Zinc-rich primer min. 70 µm + top coat epoxy resin min. 80 µm silvery gray |

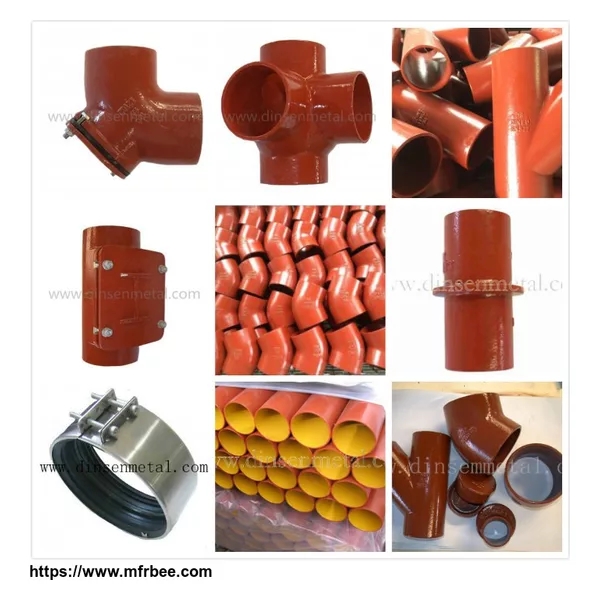

DIN19522 /EN877/BS EN877/ISO6594 Cast Iron Drainage Pipe Fittings Cast Iron Pipe conforming to DIN19522 /EN877/BS EN877/ISO6594 Material: Cast Iron with flake graphite Qualilty:GJL-150 according to EN1561 Coating: SML,KML Size:DN40-DN300 ...
名称:EN877 SML铸铁接头/ DIN19522铸铁管接头 尺寸:完整的EN877管道系列和尺寸从DN40到DN300 标准:铸铁管和管件按照EN877 / DIN19522 / ISO6594和ASTM A888 / CISPI 301,CSA制造B70,GB / T 12772. ...
ASTM A888/CISPI301 Hubless Cast Iron Soil Pipe Code Size ID OD Barrel Thickness, T Laying PC/Pallet Length, LB Inch B J Nominal Min 10 ft ± 0.50 in (3048 ±13 mm) NH0156 1 1/2 ″ 1.5±0.09 1.90±0.06 0.16 0.13 120 72 (38.1± 2.29) (48.26±1.52) 3.3 3048 NH0158 2″ 1.96±0.09 ...
