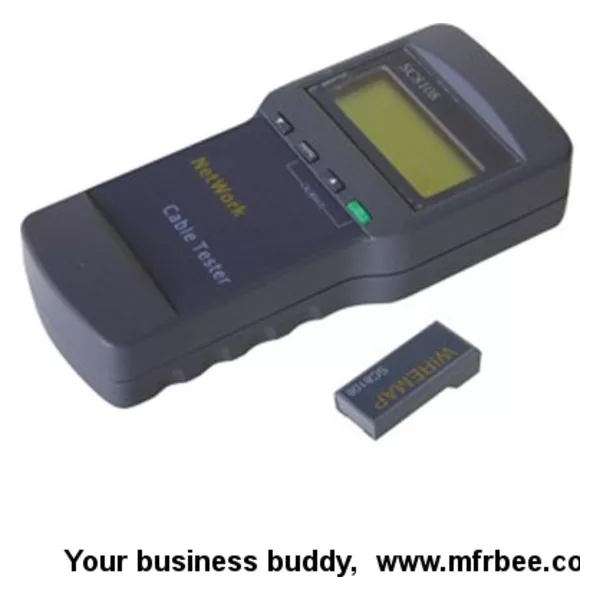

QICC-8108 Network LAN Phone Cable Tester Meter
Product Quick Detail
- Packaging
- 1pcs/box
- Delivery
- 15 Days
Specifications
Type of Tester Cable: STP/UTP twin twisted cable, coaxial cable, telephone line
Tester Port
Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
(BNC and RJ11 converters (not included in the set), can be used to measure and check the continuity of coaxial cable and telephone line)
Length Measurement of Twin Twisted Cable:
Scope: 1 to 350M (3 to 1,200 FT) calibration
Calibration accuracy: 3% (±0.5m or ±1.5 ft) (calibrating cable > 5 M)
Shipment accuracy: 5% (±0.5m or ±1.5 ft) (AMP, AT&T Class 5 cable)
Unit of Measurement: Display in meter (M) or feet (FT)
Length Calibration:
User can set self-calibration factor by a given length cable.
The length of calibrating cable is more than 5M
Wire Sequence and Locating Cable Error:
Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interference
Locating Cable:
Included 1 far-end passive test jack
Powerd by: 4 x AAA batteries
Automatic Time-delay Shut Off Time: The tester is idle for 30 minutes
Working Ambient Temperature: -10°C to 60°C
Tester Port
Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
(BNC and RJ11 converters (not included in the set), can be used to measure and check the continuity of coaxial cable and telephone line)
Length Measurement of Twin Twisted Cable:
Scope: 1 to 350M (3 to 1,200 FT) calibration
Calibration accuracy: 3% (±0.5m or ±1.5 ft) (calibrating cable > 5 M)
Shipment accuracy: 5% (±0.5m or ±1.5 ft) (AMP, AT&T Class 5 cable)
Unit of Measurement: Display in meter (M) or feet (FT)
Length Calibration:
User can set self-calibration factor by a given length cable.
The length of calibrating cable is more than 5M
Wire Sequence and Locating Cable Error:
Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interference
Locating Cable:
Included 1 far-end passive test jack
Powerd by: 4 x AAA batteries
Automatic Time-delay Shut Off Time: The tester is idle for 30 minutes
Working Ambient Temperature: -10°C to 60°C
