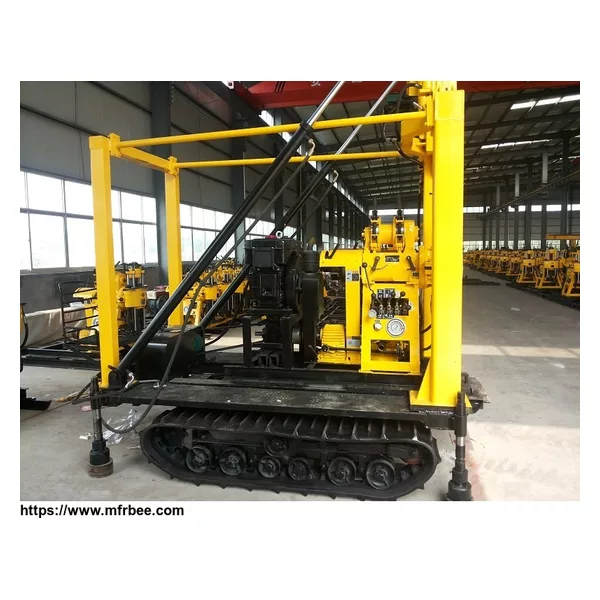

Crawler Mounted Corecore Drilling Rig
The crawler walking drilling rig adopts the full hydraulic rock drilling system. The system is advanced and equipped with anti-jamming brazing, rock drilling speed, high working efficiency and flexible rock drilling mechanism. The working face, roof, side support and floor of the roadway can be chiselled Rock operations, but also easy to drill upward bolt hole. The car modular design, small body, compact structure, low center of gravity, flexible, stable work, climbing ability, can greatly improve the working environment and construction quality.
application:
Mainly used in metallurgy, metal mines, coal mines and other projects and hydropower, railways, highways and other infrastructure tunnels, tunnels, culverts tunneling works.
Structure principle:
The whole machine adopts hydraulic transmission, automatic dust removal, automatic coil cable and crawler walking, the hydraulic cylinder dominates the parallelogram lifting, moves, elevates and lowers within the excavation roadway, the drilling work of the dobby anchor rod, and all operations of the drilling rig are controlled by the handle, Fully automated.
Features:
Can be multi-directional drilling hole.
2. Double-oil motor hydraulic power head-driven impactor can achieve deep hole operations
3. Full hydraulic thrusters, enabling easy propulsion adjustment and large lifting force.
4. Air-conditioned cab allows operators to work in a comfortable environment, eliminating the sun's dust.
5. Efficient hydraulic dust collector can achieve the effect of environmental protection.
6. Hydraulic unloading rod, eliminating heavy manual labor.
