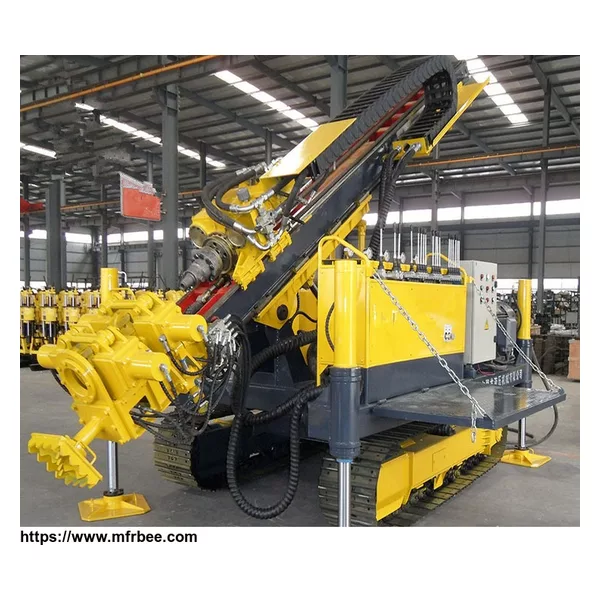

best selling Anchor Drill Rig with high quality
Product Quick Detail
- Place Of Origin
- China(Mainland)
- Minimum Order
- 1
- Packaging
- Put the spare and vulnerable parts into the carton box
- Delivery
- 7 Days
Specifications
Main parameters
| Drilling rig model | YGM70G |
| bore depth | 35~100m |
| bore diameter | 110~230mm |
| drilling rod diameter | Φ |
| bore dip angle | 0~90 |
| power head rotating speed | 0~50rpm |
| power head torque | 3900Nm |
| propulsion stroke | 1800mm |
| Mast stroke | 500mm |
| max. lifting force | 30KN |
| max. propulsion force | 25KN |
| electric motor power | 22kw |
| weight | 1400kg |
| overall dimension | 3100x1000x1500mm |
| Drilling rig model | YGM40G |
| bore depth | 10~60m |
| bore diameter | Φ90~180mm |
| drilling rod diameter | Φ76 x 1500mm |
| bore dip angle | 0~90 |
| power head torque | 2400Nm |
| max. lifting force | 25KN |
| max. propulsion force | 0~20KN |
| electric motor power for power head | 5.5kw or 7.5kw |
| electric motor power for hydraulic system | 4kw |
| weight | 500kg |
| max. component weight | 150kg |
| overall dimension | 2800x800x1400mm |
- Country: China (Mainland)
- Business Type: Trading Company
- Market:Africa,Americas,Emerging Markets,Europe,European Union,Middle East
- Founded Year:20years
- Address:China
- Contact:Allison wang
Inquires
-
wj1262482004@US,2018-02-07 14:46:29
Payment methods
T/T(telegraphic transfer),30% as prepayment by T/T, the rest after seen the copy of B/L sent by fax. We also agree other payment methods such as L/C, Western Union, Paypal, Money Gram, Trade Assurance.
Package and shipment
Put the spare and vulnerable parts into the carton box
Wooden case fumigation free package or international export wooden case package
Our services
Service on sale :
1.Test every machine and inspect the machine seriously .
2.Send the related picture which you ordered, then pack it with standard export wooden box after you confirm the machine is good.
3.Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
If delivered by express to your door(DHL, THN, FEDEX etc) or by air to your airport, or by the logistics to the warehouse which you required. We will tell the tracking number after delivery.
Service after sale:
1.Free insurance for goods
2.All day online to solve your problem. Supply you the English manual book and technical support, maintenance and install video to help you solve the problem, or dispatch worker to your factory.
