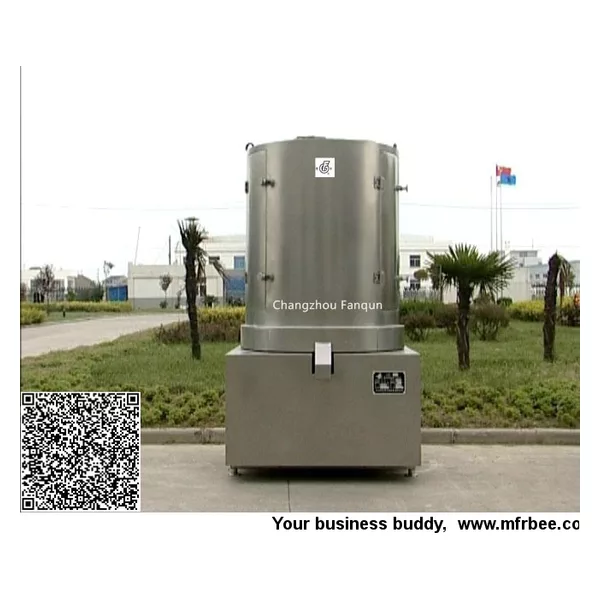

Changzhou Fanqun LZG Screw Vibration Dryer

Changzhou Fanqun LZG Screw Vibration Dryer - Changzhou Fanqun Drying Equipment - Top China Drying Equipment Manufacturer

*Principle of work

The damp raw material enters into blex bed from fed inlet at the top and moves along with the helix bed from up to low and make jumping motion to the bottom and then discharge under the action of vibration force at the circle and gravity.Meanwhile clean hot air enters into it from the bottom of helix bed and carries out heat exchande with raw material on the helix bed fully and exhausts from the outlet at the top.In this way the dry purpose of damp raw material is reached.

*Scope of application

LZGhelix vibration drier is mainly used for drying pill of Chinese traditional medicine.It can also be suitable for drying granule,short strip and ball raw material of chemical industry,pharmaceutical industry,foodstuff industry,construction material industry,feed industry and so on.

*Features

1.Because the hot air passes through the layer of raw material several times and acts counter motion bowards the raw material,the heat exchange is fully used and thermal efficiency is high;

2.The structure is compact and it occupies small area;

3.The stay time of raw material in the helix bed can be adjusted and the operation is very convenient;

4.The raw material acts the motion od circle at helix bed from up to low,at the same time th equipment can jump itself,so the contact surface between hot air and raw material in increased too and the dry effect is strenthened;

5.The equipment is suitable for continuous operation because of continuous feeding and discharging raw material;Meanwhile it is easy to meet the requipments of “GMP”.

6.It does not damage the surface and shape of rawmaterial basically.It can only maintain the roundness of pill but also decrease the broken rate of pill.
