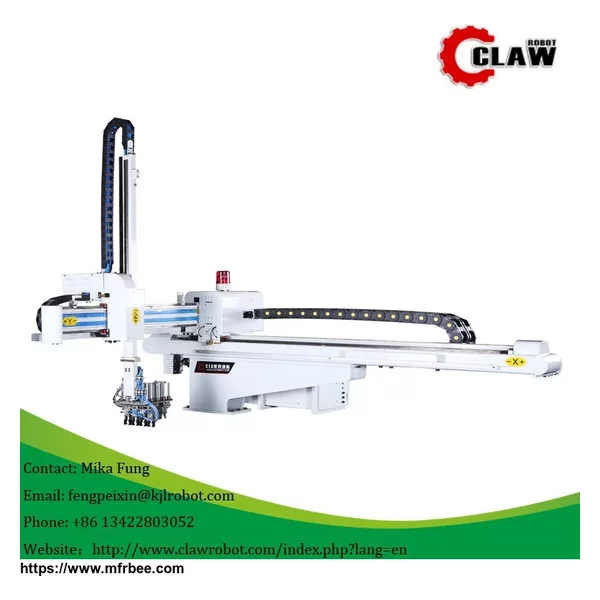

IML Robot
Product Quick Detail
- FOB Price
- USD $35,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 15 Days
Specifications
- Greatly improve productivity and reduce production costs
- To stabilize and improve the quality of injection molded plastic products
- To avoid losses due to human error caused by the operation
- Traverse servo, arm pneumatic and traverse servo, arm servo for choice
| Model | I.M.M.Range(ton) | Vertical | Crosswise | Traverse | Dry Take Out Time(Sec) | Dry Cycle Time | Max Loading(KG) | Net Weight(KG) |
| DI650DII/I | 30-120T | 650 | R:125 P:250 | 2300 | 1.0(1.3) | 14/15 | 5 | 480 |
| DI750DII/I | 120-200T | 750 | R:125 P:300 | 2700 | 1.1(1.4) | 15/16 | 5 | 510 |
| DI850DII/I | 150-250T | 850 | R:125 P:500 | 3100 | 1.2(1.5) | 16/17 | 5 | 540 |
| DI950DII/I | 250-400T | 950 | R:125 P:500 | 3500 | 1.4(1.7) | 17/18 | 5 | 570 |
| DI1100DII/I | 350-550T | 1000 | R:125 P:600 | 3900 | 1.5(1.8) | 18/20 | 5 |
600 |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,Europe,Middle East,Asia
- Founded Year:2002
- Address:NO.8 of Minying Road,Minying technological park,Shiqi district,Zhongshan city,Guangdong province,China.
- Contact:Mika Fung
