Zoo Mesh
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Packaging
- Inside Waterproof-paper and wooden case outside
- Delivery
- 5-30Days
Specifications
Zoo Mesh:
Details:

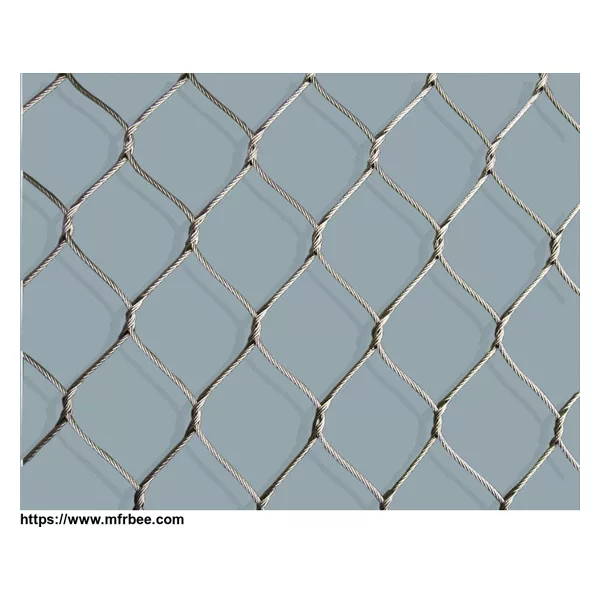

Stainless steel wire cable mesh is light, robust, and transparent. Inner-knot by high-quality stainless steel cables are used for the production of the mesh and distribute from around so much load-bearing and flexible structure.
The stainless steel wire cable mesh was developed in 1990 by our technology team. The design succeeded in achieving a structural element which is simultaneously securing as well as a design element. The application areas are accordingly versatile: the mesh is used as transparent barriers in zoo facilities and building constructions.
The stainless steel mesh is manufactured in the standard diameters 1mm, 1.5mm, 2mm,2.4mm, 3mm,3.2mm and 4 mm. Mesh aperture of 25mm to 200mm are possible depending on cable diameter. It is manufactured from high-grade stainless steel cables of material class AISI304 or AISI316.
We will gladly support you in your project planning. We advise on the static’s of demanding concepts and take over the assembly of the stainless steel mesh.
| Flexible stainless steel cable mesh WOVEN TYPE (Stainless grade304) | |||||
| NO.S | Cable diameter | Mesh Opening Size | Nominal Break | ||
| Inch | mm | Inch | mm | Lbs. | |
| GT-32102W | 1/8 | 3.2 | 4×4 | 102×102 | 1600 |
| GT-3276W | 1/8 | 3.2 | 3×3 | 76×76 | 1600 |
| GT-3251W | 1/8 | 3.2 | 2×2 | 51×51 | 1600 |
| GT-24102W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| GT-2476W | 3/32 | 2.4 | 3×3 | 76×76 | 920 |
| GT-2451W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| GT-2076W | 5/64 | 2.0 | 3×3 | 76×76 | 676 |
| GT-2051W | 5/64 | 2.0 | 2×2 | 51×51 | 676 |
| GT-2038W | 5/64 | 2.0 | 1.5×1.5 | 38×38 | 676 |
| GT-1676W | 1/16 | 1.6 | 3×3 | 76×76 | 480 |
| GT-1651W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| GT-1638W | 1/16 | 1.6 | 1.5×1.5 | 38×38 | 480 |
| GT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
| GT-1251W | 3/64 | 1.2 | 2×2 | 51×51 | 270 |
| GT-1238W | 3/64 | 1.2 | 1.5×1.5 | 38×38 | 270 |
| GT-1225W | 3/64 | 1.2 | 1×1 | 25.4×25.4 | 270 |
Remark:
1. Our Stainless steel Ferrule type Mesh open size can be made to any size from 2" x 2" to any size, such as 2.01", 2.02", 2.03"....to any (5", 8"...).
2. The mesh aperture angle according 90°design for my client, if you have any questions, please let me know in freely time.
Price
- Delivery Port :Tianjin
Packaging & Delivery
- Packing :Inside Waterproof-paper and wooden case outside
- Delivery Lead Time :5-30 days after received your balance
- Supply Ability :3000 Square meter per Month
