Hook Strip Flat Screen

FOB Price
USD $35.00 / Piece
Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
Inside Waterproof-paper and wooden case outside
Delivery
15 Days

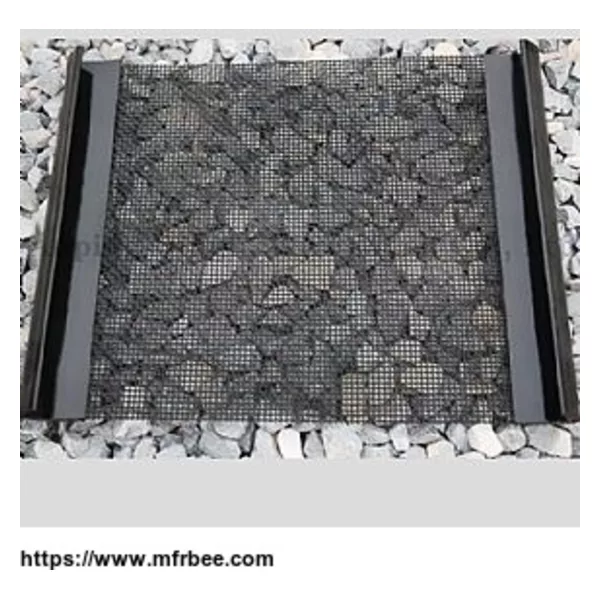

Hook Strip Flat Screen

  1. Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better. Screen with different mesh counts with suitable opening sizes of the backing plate. Doing so, our products will obtain the largest effective area under the condition of enough strength.
  2. The bottom layer with low mesh counts has coarse wire and can be tight bonded to the backing to make up one block. So the strength of whole screen mesh get up and the useful life is increased.
  3. The mesh, divided into many independent small units by grids of the backing plate, can prevent rigs of tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair damages. By doing so, the operator can cut down the stop time and reduce the cost.
Screen Model Range of Mesh Dimension (Length × Width) Brand & Model Of Shaker Weight (Kg)
PDHF-1 16-325 903 × 1155mm BEM-3 5.6
PDHF-2 16-325 1212 × 1141mm ALS-11 9
PDHF-3 16-325 697 × 1050mm FLC500 Series 6
PDHF-4 16-325 697 × 1053mm FLC2000 4.2
PDHF-5 16-325 697 × 846mm FLC313M 4
PDHF-6 16-325 915 × 1150mm LCM-20 8.6
PDHF-7 16-325 720 × 1220mm KTL48 Series 5.6
PDHF-8 16-250 700 × 1165mm S250 4.6
PDHF-9 16-250 1186 × 1280mm ZX60 9.2


Price

  • Delivery Port :Tianjin

Packaging & Delivery

  • Packing :Inside Waterproof-paper and wooden case outside
  • Delivery Lead Time :5-30 days after received your balance
  • Supply Ability :3000 Square meter per Month
  • Country: China (Mainland)
  • Business Type:
  • Market:Europe
  • Founded Year:2005
  • Address:South Industrial Park Iv-30 Of Anping County, Hebei Provice, China
  • Contact:Roy Wang
