LED DOTS
Product Quick Detail
- Place Of Origin
- SHENZHEN
- Minimum Order
- 1
- Packaging
- Wooden case
- Delivery
- 15 Days
Specifications
|

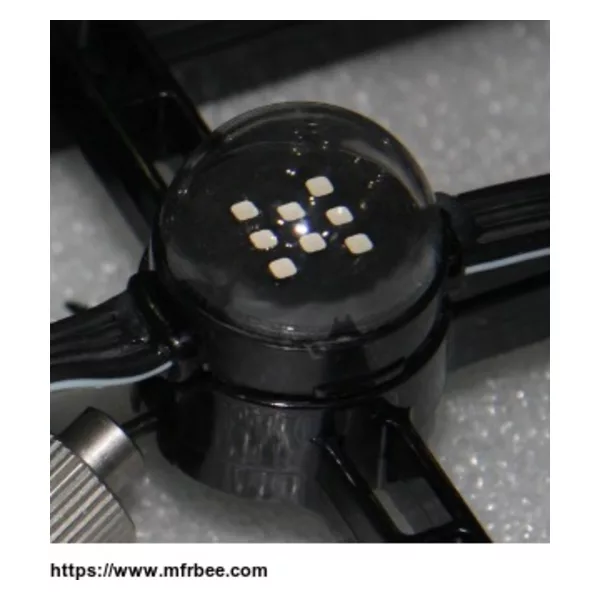

Flexible LED dots
|
|
|
Model Name
|
M6
|
|
Pixel Pitch
|
37.5mm / 56.25mm / 75mm (pixel pitch can also be customized)
|
|
Pixel Configuration
|
6*SMD3535
|
|
Panel Size
|
0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized)
0.98' x 15.75' / 1.48' x 23.62' / 1.97' x 31.50' |
|
Brightness
|
7200nits/ 5100nits /2400nits (Nationstar SMD3535)
|
|
Transparency Rate
|
55% / 75% / 85%
|
|
Weight
|
10.5 kg/sqm; 5.5 kg/sqm; 3.5 kg/sqm
23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm |
|
IP Rating(Front/Rear)
|
IP66
|
|
Refresh Rate
|
1000 Hz
|
|
Scan Mode
|
Static
|
|
Max Power Consumption
|
600 W/sqm; 400 W/sqm ; 250 W/sqm
|
|
Color Processing
|
16 bit
|
|
Viewing Angle（H/V）
|
140°/110°
|
|
Operating Temperature
|
-40~45°C
|
|
Main Power Source
|
AC 100-240V; 50/60Hz
|
|
Input Voltage
|
24V DC
|
|
Humidity
|
10~90%RH
|
|
Life Time
|
100,000 Hours
|
- Country: China (Mainland)
- Business Type: LED display /Creative LED display
- Market:Europe/USA
- Founded Year:3
- Address:Building C, Chuangxinyungu industrial park, No.48, Paotai road, Lisonglang first industrial zone, Guangming new district, Shenzhen，518106， China
- Contact:Kevin X
