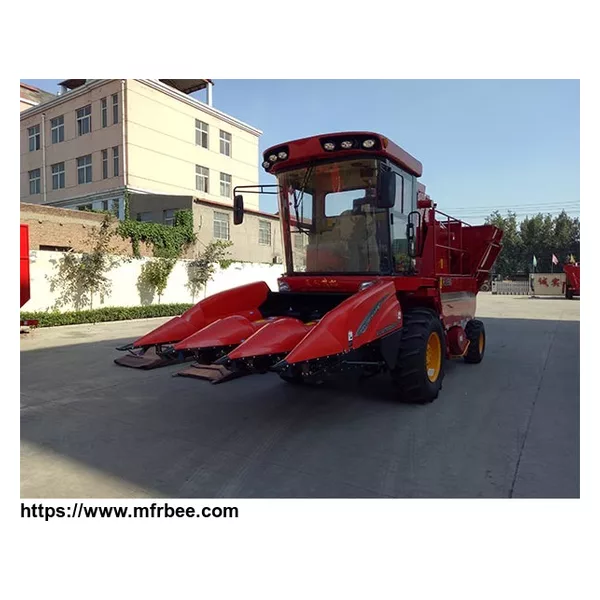

TR9988-3700 Self-propelled Corn Picker

Minimum Order
1
Place Of Origin
china
FOB Price
USD $3,000.00 / Piece
Packaging
N/A
Delivery
30 Days

Quick Information

  • Brand Name:TIANREN
  • Place of Origin:China
  • Model Number :010
  • Certificate :CE
  • Type :Combine Harvester
  • Usage :Grain Harvester

Description

TR9988-3700 Self-propelled Corn picker

Model TR9988-3700
Function picking up, peeling,cutting stalks, unloading etc
Number of rows 3
Regular row spacing (mm) 650, 700, 750 etc
Workable row spacing range (mm) ±50
Engine power (kw/hp) 113/154
Size (mm) 7900*2600*3550
Wheel base (mm) 1635
Grain tank Volume (m³) 2.5
Unloading height (mm) 2600
Breakage rate ≤1%
Total loss rate ≤3%
Peeling rate ≥85%
The minimum corn cob height from field (mm) 200
Harvesting efficiency (Acre/hour) 0.8-1.6
NW (kg) 6200
Stubble height (mm) ≤120
Flail chopper Optional
Stalk chopper Optional
Air conditioner Optional

More Features

● Total Loss Rate: ≤ 3%
● Trustworthy High Pressure Common Rail Diesel Engine (European emission
standard III) from Weichai
● Engine with fireproof containment protection, Keep corn whisker away
● Aluminum Alloy Gear Box
● Clutch comes with Two friction plate for extended service life
● Sheller concave with Hydraulic adjustment
● Upgraded driving cab with more comfortability
● Stalk cut into piece shorter than 10cm with Field Straw Chopper
● Advanced husking unit design: high peeling rate, good adaptability, less grain loss, high reliability.
● Air Conditioner
● Rustproof Finishment
● Real time operation monitor system with LCD Panel


Main Advantage:

● Tianren Corn Corn Picker, Corn Harvester and Combine harvester are all equipped with TIANREN industry leading corn head
● Reliable and durable chassis design: equipped with quality gearbox, stepless speed adjustment; strengthened front axel, underframe, and main frame, more durable.
● Leading performance diesel engine: featuring huge power reserve and less fuel consumption.
● Patented energy saving protection of engine: using the wind from radiator fan to ensure no corn leaves and other combustible gathered around the engine, energy saving.
● Advanced hydraulic lifting system: can lift peeled corn the second time to ensure the 6.7 m³ grain tank filled automatically, save time and manpower.
● The corn header attached flail blade(optional): can do stubble ploughing, save 40% fuel consumption by crushing the stalks together with snapping.



Price

  • Delivery Port :As per customers' request

Packaging & Delivery

  • Packing :As per customer’s request
  • Delivery Lead Time :Shipped in 30 days after payment
  • Supply Ability :2000 Sets of Corn Harvester/Year , 20000 Rows of Corn Header/Year
