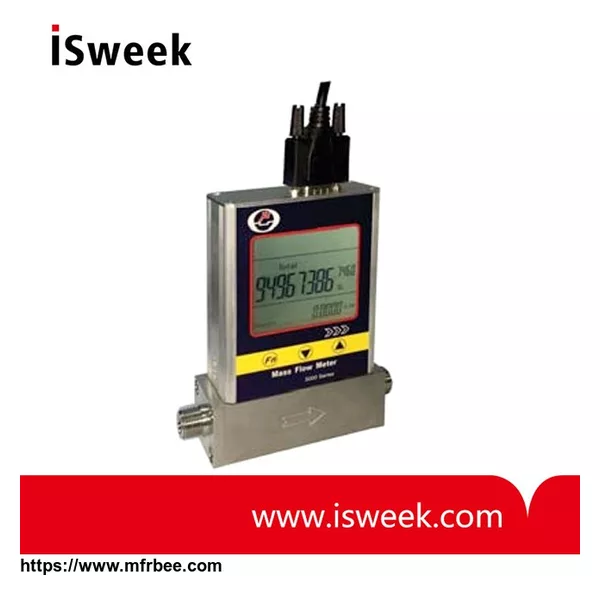

MF5000 series Gas Mass Flow Meters General description
MF5000 series mass flow meters are specially designed for small pipe flow monitoring and feature an extremely low pressure loss compared to the traditional by-pass thermal mass flow meters in this application scope. The accuracy of the meters are generally ±(1.5+0.5FS)% or better depending on the requests. The meters can work at an environment of -20 to 60°C and pressure up to 1.5 MPa. Applications include semiconductor gas process monitoring and control, hospital oxygen gas monitoring, etc.
MF5000 Series have 5 designs, with model number:MF5003/MF5006/MF5008/MF5012/MF5019.
MF5000 series Gas Mass Flow Meters Features and Applications
- Highly sensitive, measuring as low as 8 mm/sec, and as high as 65 m/sec with a single assembly
- Directly sense mass flow using thermal mass flow principle
- Proprietary MEMS sensor package design for better reliability
- Standard 12 ~ 24 Vdc power supply
- Low pressure loss forreducing energy cost
- Industrial standard Modbus protocol for easy networking and remote control
MF5000 series Gas Mass Flow Meters Mechanical Dimensions
MF5000 series Gas Mass Flow Meters Specifications
Accuracy | ±(1.5+0.5 FS)% |
Environment | Temperature: -20 ~ +60℃; Humidity: < 95%RH (No icing or condensation) |
Flow channel | 3 ~ 19 mm |
Display | Flow rate and accumulated flow |
Interface | 4 ~ 20 mA; RS485; Pulse |
Calibration | Air @ 20℃; 101.325 kPa |
Protection | IP40 (Without Ex proof model); IP66 (With Ex proof model) |
Ex Proof | Ex d IIC T4 |
