Chemical Composition(%)
B % | 75-81 |
C% | 17-22 |
Fe2O3% | 0.1-0.8 |
B4C% | 90-99 |
Physical Properties

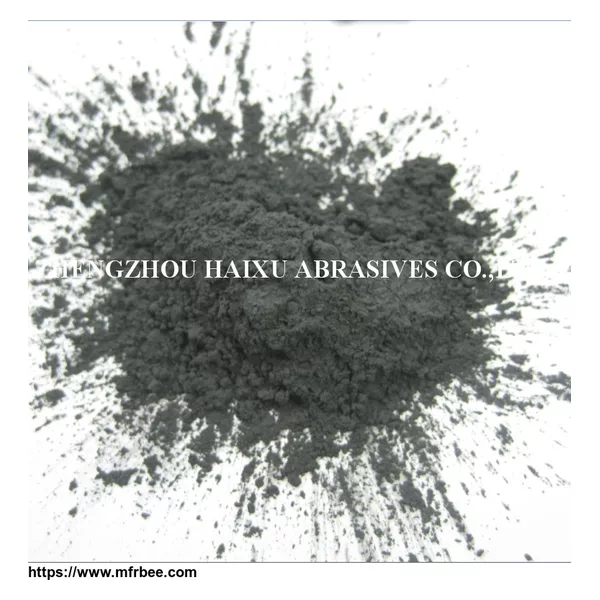

Color | Black Powder |
Molecular Formula | B4C |
Density & phase | 2.52g/cm3 Solid |
Solubility In Water | Insoluble |
Melting Point | 2450°C |
Boiling point | 3500°C |
Crystal Structure | Rhombohedral |
Mohs Hardness | 9.6 |
Micro Hardness | 4950kgf/mm2 |
Main Application
1 |
Application of B4C in national defense industry
B4C can be used to produce bulletproof materials, such as bulletproof plate in bulletproof vests, ceramic bulletproof tile in military airplane pilot cabin and bulletproof plate in modern armored personnel vehicle and tank. It can also be used to produce the nozzles of gun and artillery in munitions industry. |
2 |
For Nuclear Industry
B4C can be prepared into controlling bars, adjusting bars, accident bars, safety bars, screen bars, radiation resistant B4C tilts, plate, or neutron absorber(prepared with high B10 content powders),and radiation resistant layer for atomic reactor together with cement which is the most important functional component only next to reactor fuel. |
3 |
For Refractories Industry
B4C can be used as anti-oxidation agent for low carbon magnesia carbon brocks and castables. It can be applied in key positions which suffer from serious erosion and high temperature, such as ladle, taphole(nozzle),sliding plate and stopper. |
4 |
For Other Engineering Ceramic Materials
B4C can be prepared into nozzles for sand spraying machine and high pressure water cutter, ring seal, mould for ceramics etc |
5 |
For Normal Industry Fields
B4C is used to prepare: high grade wear-resistant welding rods to strength the wear resistance of welding face; grinding and polishing materials, water cutting abrasives and polishing materials for diamond abrasives tools; polishing and grinding of jewels. |
6 |
Application of B4C on Electrical Property
B4C-graphite thermocouple is composed of graphite pipe, B4C bar and BN Lining.In inert gases and vacuum, its service temperature is 2200℃,the linear relation of electric potential difference and temperature is good |
7 |
Application of B4C as Chemical Material
After being activated nu halogens, B4C powder can be used as boronation agent of steel and other alloys for boronizing on the steel surface, forming a thin iron boride layer, increasing the strength and wear resistance of the materials. |
Available Sizes
FEPA | F60 F80 F100 F120 F150 F180 F220 F230 F240 F280 F320 F400 F500 F600 F800 F1000 F1200 F1500 F2000 |
JIS | JIS#60 JIS#80 JIS#100 JIS#120 JIS#150 JIS#180 JIS#220 JIS#240 JIS#280 JIS#320 JIS#360 JIS$400 JIS#500 JIS#600 JIS#800 JIS#1000 JIS#1200 JIS#1500 JIS#2000 JIS#2500 JIS#3000 JIS#4000 JIS#6000 JIS#8000 |
Packing
1 | 1kg +box |
2 | 20kgs paper bags+pallet |
3 | 20kgs Barrels+pallet |
