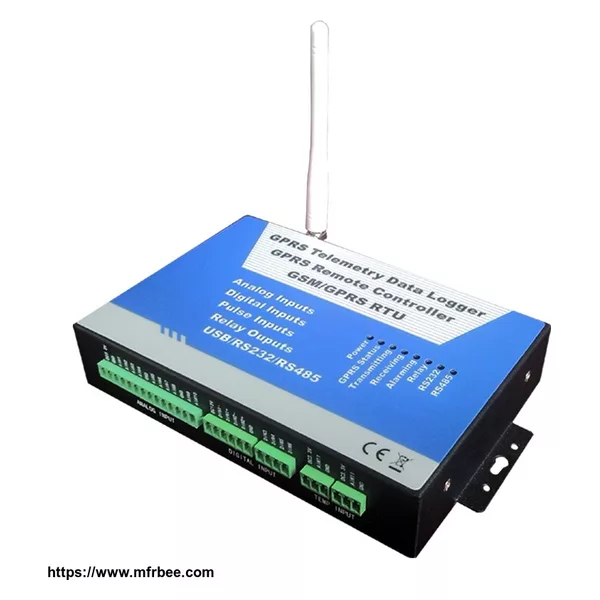

Model:S240
Name: GPRS Modbus TCP RTU Remote Controller
(10AIN/6DIN/4Dout/1RS485)
Keyword:
Data Logger,Telemetry Automation Controller,PLC,GSM Pluse Counter,Counting Unit,RTU, GPRS RTU, RTU Automation, GPRS RTU Automation, M2M, GPRS M2M,telemetry , GPRS Telemetry, wireless telemetry,modbus gateway, ModBus RTU/TCP Gateway, Modbus RTU SMS/Voice Alarm, GSM Modbus RTU SMS Alarm, Remote Control, GSM Alarm. GSM 3G Modbus Slave, GSM Modbus Master. 3G Modbus TCP Master SMS Alarm.
The King Pigeon S2XX Serial GSM/GPRS Remote Controller equipped Siemens MC55i quad-band GSM Module inside to make it is industrial class reliability, is a low cost, wireless M2M, wireless data logger, universal GSM GPRS Engine which can remote control outputs, transmit and receive analog, digital and pulse counter data, PLC, Varity metering equipments to any device connected to the Wireless GSM GPRS network such as mobile phones, Web Sites, monitoring center, control room, SCADA, etc.
1. Directly to SCADA System
If the users want to log data to its present SCADA system directly, the user must develop the GSM/GPRS Driver then install in its present SCADA according to our communication protocols. The topological graph please see below:
2. Monitoring by SCADA System through OPC Server
If the users want to log data to its present SCADA system through OPC Server, the user must develop the GSM/GPRS Driver then install in its present OPC Server according to our communication protocols, so that the OPC Clients can access the GSM/GPRS RTU through OPC Server. The topological graph please see below:
3. By customer customization monitoring center
If the users want to log data to its customization monitoring center, the user must develop the GSM/GPRS Driver then install in its monitoring center software according to our communication protocols. The topological graph please see below:
4. By Mobile phone through SMS.
The GSM/GPRS RTU can send the reports and events by SMS to 1 SMS Center number and 6 user numbers.
Model | AIN | DIN | DOUT | Temp. | USB | RS232 | RS485 |
S200 | 4 | 2 | 2 | 2 | 1 | 0 | 1 |
S220 | 6 | 6 | 4 | 2 | 1 | 0 | 1 |
S240 | 10 | 6 | 4 | 2 | 1 | 0 | 1 |
**The S200,S220,S240 support to upgrade the firmware by USB on site by end-users, no need to return the hardware to our factory if you need more special functions or want to use the
latest version firmware.
**The user can remotely real-time monitoring the GSM GPRS Remote Controller by GPRS remotely via the PC Configurator. |
