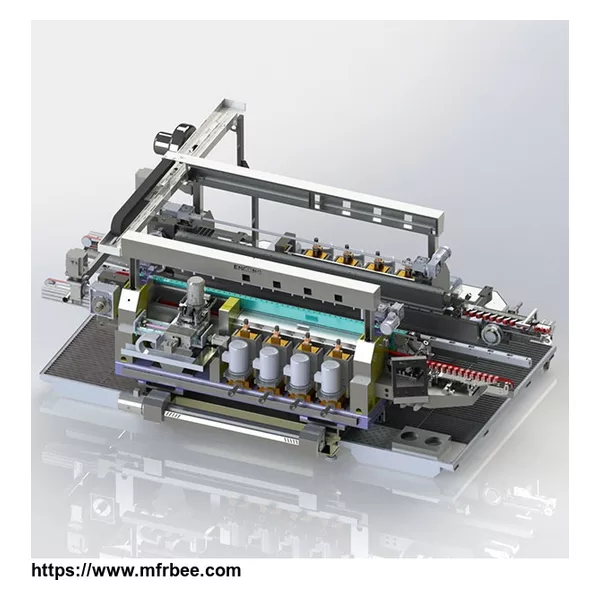

SYM12/08 DOUBLE ROUND EDGING MACHINE

Technical Date

• Number of Spindles: 8 or 12
• Max. glass dimension: Up to 2500
• Min. glass size: 150mm
• Glass thickness: 3~12 mm
• Working Speed: 0.5-15m/mins
• Width adjustment Speed: 2 m/mins (optional:8m/mins)
• Max. edge grinding: 1.5mm
• Tolerance of the diagonal(1000x1000): ±0.5mm
• Tolerance on the parallelism(mm): ±0.3mm
• Total power: 24 KW
