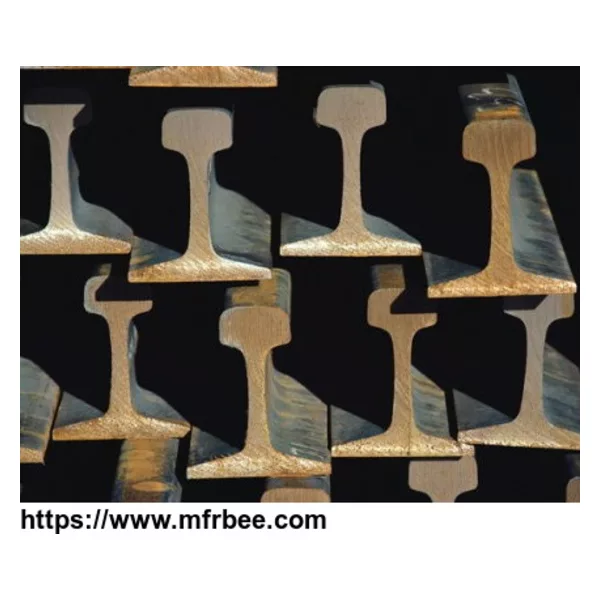

18kg light steel rail
Product Quick Detail
- Place Of Origin
- China
- Packaging
- Standard packaging
- Delivery
- 1-7 working days after the deal
Specifications
| size | Rail Height | Bottom Width | Head Width | Web Thickness |
Weight
kg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 |
| 18kg | 90 | 80 | 40 | 10 | 18.06 |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 |
| 24kg | 107 | 92 | 51 | 10.9 | 24.95 |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
Material: Q235B/55Q
Standard: GB11264-89, YB222-63
Length: 6-12m
Main Function:
Light rail is mainly orient ed and load bearing, it is used with the track wheel, to support the weight and change the direction of the cart.
Main Application:
The light rail is mainly used for the laying of temporary transportation lines and light locomotive lines for forest areas, mining areas, factories and construction sites.
