New Original SmartAX 5800 Series OLT Gepon Huawei MA5800-X7
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Huawei MA5800-X7 2*MPLA+2*PILA+GPBD C+ SFP
Product Description:
Driven by the global fiber access evolution trend, Huawei next-generation OLT platform is developed in collaboration with our customers. The MA5800 series of OLT is the latest and the most advanced OLT platform in the industry. It is designed to support continuing growth in bandwidth demand, wire-line and wireless access convergence, and migration toward SDN.
The industry’s first 40 Gbit/s-capacity Next-Generation Optical Line Terminal (NG-OLT). Huawei’s SmartAX MA5800 multiple-service access module employs a distributed architecture to support ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities, such as SDN-based virtualization.
MA5800’s programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning of wholesale and retail service providers.

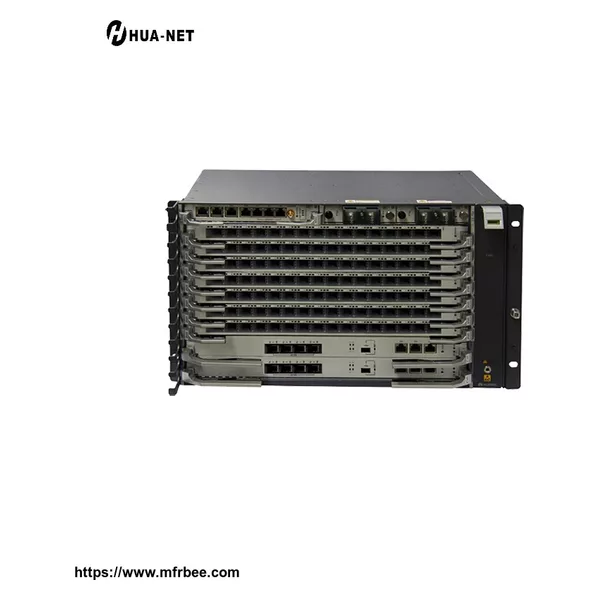

Product Image:
Ultra-broadband optical networking supports Fixed Mobile Convergence (FMC) and SDN-based smart services
Each service slot offers 200 Gbit/s throughput capability, guaranteeing non-blocking access for high-density XG-PON and 40G-PON
Each sub-rack supports up to 32K users with 100 Mbit/s of non-blocking bandwidth, allowing seamless 4K video viewing
Full-service PON/P2P access for home, enterprise, and mobile backhaul creates a single optical network with FMC services
The MA5800 series of OLT is available with the following highlights:
1. Ultra-broadband
a. 160G per-slot bandwidth
b. Distributed forwarding architecture
c. Extensible system bandwidth and capacity
2. Fixed-mobile Convergence (FMC) oriented
a. Full service GPON, XG-PON1, NG-GPON2, WDM-PON, 1G P2P, 10G P2P for home, office, small cells, and mobile backhaul
b. Access and aggregation in a single platform
3. SDN ready
a. Programmable NP architecture
b. Embedded Access Node controllers
Specification:
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 |
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF |
| MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching |
| IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay |
| Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast |
| QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL |
| System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control |
Applications:
*Data services
*Voice services
*Video services
*Monitoring service
*FTTH / FTTB / FTTO / FTTP
