KB Series FRPP/PVDF Acid Alkali Resistance Centrifugal self-priming Pump
Product Quick Detail
- Minimum Order
- 2
- Place Of Origin
- CHINA
- Model No
- KB-40032H
- Packaging
- wooden case
- Delivery
- 15 Days
Specifications
KB Series Anti-Corrosive Self-priming Pump
Operating Temperature:0oC ~ 90oC
Flow Range : 280 L/Min ~ 780L/Min
Pump lift: 14m ~ 37 m
Product Overview:
KB Series horizontal Type anti-corrosive pump is single stage single suction vertical mechanical seal pump.
Design Feature:
1.Special shaft seal design ,inner built-in teflon bellows sealing with self- cooling designed .
2. Self-priming type design with strongly self-suction catch up to 6 meter.and also assembled with check valve design, prevent the pumping liquid return back in pump shell.
3.Anti-corrosive ,strongly alkali proof, strongly anti-corrosive. ( With materials of CFRPP,FRPP, CVPC, PVDF .
4.Suction pot need install bottom valve to block foreign body inhalation. Exhaust pot need install an cut -off valve to transient reflux phenomenon when stop running pump .result of pump body damage .
Application Field :
it is use on transfer corrosive liquids contained acid and alkali chemical liquids and sewage ,waste water delivery ,circulation ,exhaustion.it is Widely application on electroplate , Electronic chemical plating leather dyeing waste water industries.

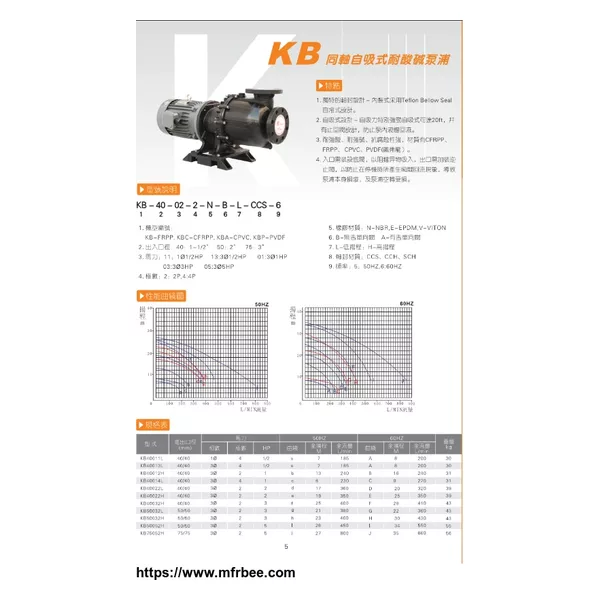

Model Sense :
| KB – 40 – 02 – 2 – N –B – L – CCH - 5 | |
| KB | Model Code:KB-FRPP KBC-CFRPP KBA-CPVC KBP-PVDF |
| 40 | Inlet & Outlet Diameter :40-1.5” 50-2” 75-3” |
| 02 |
Horsepower :
11-1 ø1/2HP 13-3 ø1/2HP 01-3 ø1HP 02-3 ø2HP 03-3 ø3HP 05-3 ø5HP |
| 2 | Stage:2-2P 4-4P |
| N | Rubber Materials :N-NBR E-EPDM V-VITON |
| B | B-Non tongue check valve A- One way valve with tongu |
| L | L- Lower Pump Head H- High Pump Head |
| CCH | Shaft Sealing Materials :CCS CCH SCH |
| 5 |
Frequency :5-50Hz 6-60Hz |
