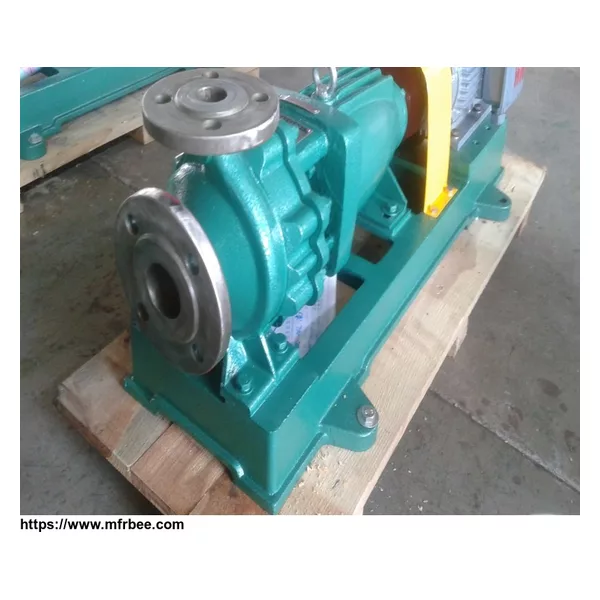

IH Series stainless steel Centrifugal Pump

IH Series Stainless Steel Centrifugal Pump

Operating Temperature:-20^oC ~ 150^oC

Pump Flow:3m³/h ~ 600m³/h

Pump Lift:5 m ~ 125m

Product Overview: IH Series Pump is a horizontal single-stage single-suction centrifugal pump . It Can transmit the corrosive physical and chemical properties similar to water without solid particles in the liquid. IH series pump manufactured in accordance with international advanced standards of ISO2858-1975 (E). It selected Double end seal cooling device ,so it can transmit medium up to 300^oC. It is also an China's promotion of energy-saving pump products. it is simple, reliable performance, small size, light weight, corrosion resistance, and low power consumption, the use of easy maintenance.

Application Field :

1. It applies to the city of environmental protection, construction, fire, chemical, pharmaceutical, dyeing, printing and dyeing, brewing, electricity, electroplating, paper, petroleum, mining, equipment cooling, such as tanker unloading.

2 .It applicable to water, sea water and with acid or base chemical liquid medium and the slurry with a general paste (medium viscosity P ≤ 100 per cent, with solid volume of up to 30% or less).

Technical Note

IH-type pump have widely full range of 140 kinds of specifications of work, but only four axis; the same specifications shaft, bearings, shaft seal, impeller and other fasteners are able to exchange; a full range of pump price is also only four hanging species.

Pump speed is divided into 2900 and 1450 r / min in two classifications.

Min Flow : 10m3/hour (2900r/min) ; 5 m3/hour (1450r/min)

Max Flow: 240 m3/hour(2900r/min) ; 460m3/hour(1450r/min)

Pipeline pressure to allow inhalation of 0.3MPa.

Pump maximum pressure 1.6Mpa

Pump Materials:

• Pump Body : Stainless Steel of (304 / 316/ 316L)

• Impeller: Stainless Steel of (304 / 316/ 316L)

• Impeller nut :Stainless Steel of (304 / 316/ 316L)

• Alex Sleeve: Stainless Steel (304 / 316/ 316L)

• Seal Gland : Stainless Steel (304/ 316/ 316L)

• Mechanical Seal : :Alumina Ceramic (Silicon Carbide); PTFE

• Bearing : Gcr15 Steel

• Coupling : Cast Iron

• Motor : WNM Motor or other China Motor brand
