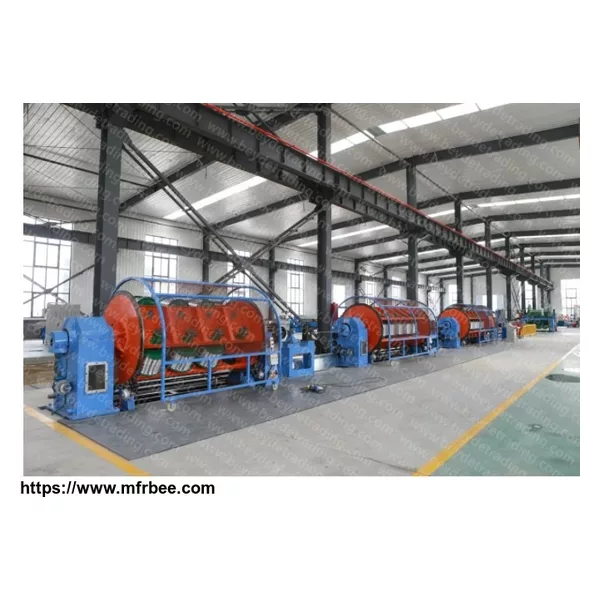

Rigid frame stranding machine side bottom auto loading
Product Quick Detail
- FOB Price
- USD $50,000.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- container
- Delivery
- 90 Days
Specifications
The Rigid Strander/Cabler is suitable for the concentric assembly of: Stranded conductors for low, medium and high voltage applications, Cabling insulated conductors for control cables, Screened power cables and Steel wire armouring.
2. The machine is suitable for:
- Stranding of unilay, reverse concentric, round, compressed, compacted conductors
- Strand ACSR (Aluminum Conductor Steel Reinforced) conductors
- Strand AAAC (All Aluminum Alloy) Conductors
- Strand Milliken (segmented) conductors
- Armouring and screening
- Cabling insulated conductors for control cables
3. Rigid Stranding Machine are based on different bobbin size in stranding cage: PND500, PND630
- 19 wires: 1+6+12
- 30 wires: 12+18
- 37 wires: 1+6+12+18
- 54 wires: 12+18+24
- 61 wires: 1+6+12+18+24
- 84 wires: 12+18+24+30
- 91 wries: 1+6+12+18+24+30
4. Two Kinds of Loading Types
- Single bobbin Bucket Loading
- Side bottom bobbin Batch Loading
We are also making the following machines
- Country: China (Mainland)
- Business Type: cable stranding machine
- Market:GLOBAL MARKET
- Founded Year:2020
- Address:YANGMING INDUSTRY ZONE, YUYAO,ZHEJIANG ,CHINA
- Contact:Max Xu
