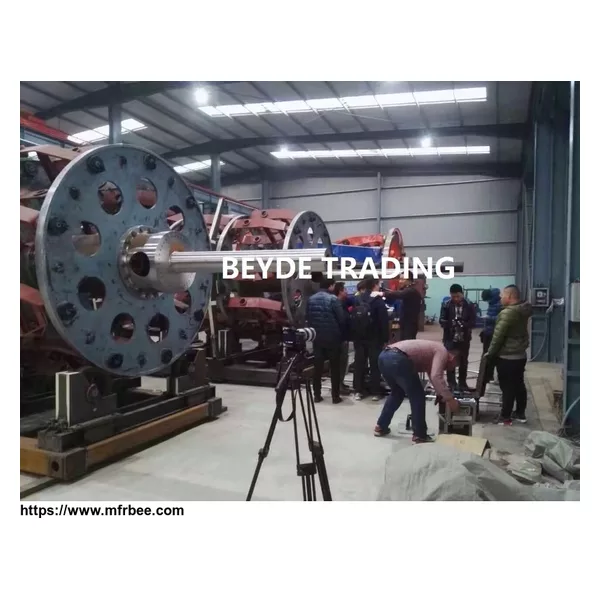

Cable Strander.Cable Stranding Machine.Planetary Stranding Machine.
Product Quick Detail
- FOB Price
- USD $50,000.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- container
- Delivery
- 90 Days
Specifications
Application: The machine is used for stranding control cable, copper cores, ACSR, Aluminum and copper conductor, and needed by big section of steel stranded wire and steel wire rope making
b) Component: Central pay-off device, mainframes of 6-bobbin, 12- bobbin, 18- bobbin, 24- bobbin, 30- bobbin, die holder, taping device, armouring device, traction, take-up and traverse device, transmission system and electric control system.
c) Technical Parameter:
|
- Country: China (Mainland)
- Business Type: cable stranding machine
- Market:GLOBAL MARKET
- Founded Year:2020
- Address:YANGMING INDUSTRY ZONE, YUYAO,ZHEJIANG ,CHINA
- Contact:Max Xu
