Technology
|

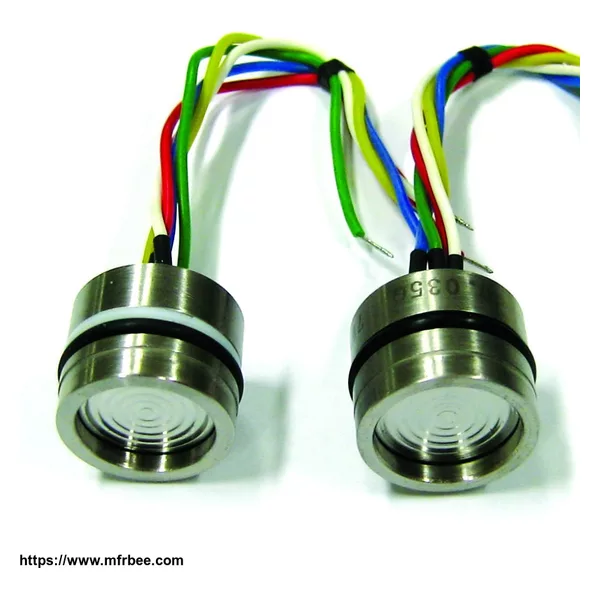

Piezoresistive Diffusion Silicon Pressure Sensor
|
|
Nominal range
|
35kPa, 100kPa, 250kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 6MPa
|
|
4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60Mpa,100Mpa
|
|
Pressure reference
|
Gauge, Sealed guage, Absolute
|
|
Overload
|
1.5~2 times nominal scale
|
|
Zero offset
|
±2mV
|
|
Full scale output
|
≥100mV(typical);
|
|
Accuracy
|
±0.25%F.S
|
|
Long term stability
|
±0.2%F.S/year
|
|
|
|
Electrical Specifications
|
|
|
Excitation
|
1.5mADC (5 VDC available)
|
|
Insulation resistance
|
≥100MΩ/100VDC
|
|
Bridge resistance
|
3kΩ~6kΩ
|
|
Electrical connection
|
4 wires (5 wires available)
|
|
|
|
Environmental
|
|
|
Operating temperature range
|
-30~100ºC
|
|
Compensated temperature range
|
0~70ºC
|
|
Thermal sensitivity coefficient
|
≤±0.02%F.S/ºC
|
|
Thermal zero coefficient
|
≤±0.02%F.S/ºC
|
|
Physical Specification
|
|
|
Process connection
|
OD17mm "O" Ring
|
|
Process media
|
Gas and liquid
|
|
Materials wetted by process
|
Stainless 316L standard
|
|
Optional: Tantalum & Hastelloy(special order)
|
|
Fill fluid
|
Silicon oil or olive oil(sanitary centrifugal)
|
|
Weight
|
