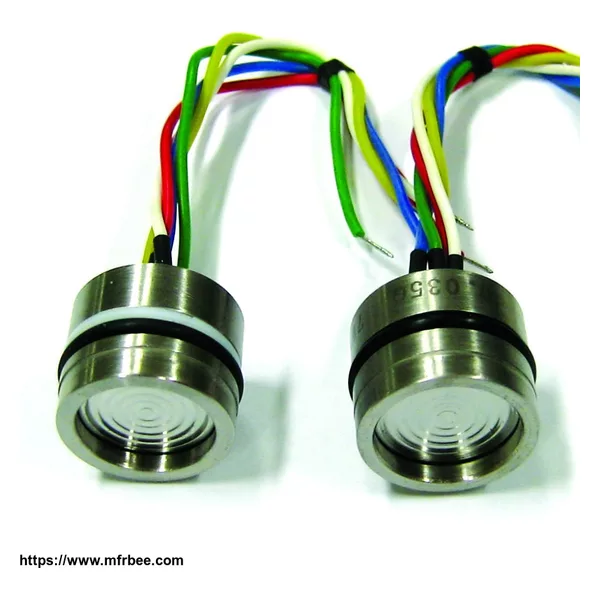

High precision pressure transducer for industrial applications
Measuring ranges from 0-0.25- 25Mpa
Piezoresistive diffusion silicon pressure sensor
Excellent accuracy and long term stability
316L package assemble conveniently
The transducer can be used for a wide range of applications in process control, automatic machinery and hydraulic or pneumatic system design.
Performance Specification
|
|
Technology
|
Piezoresistive Diffusion Silicon Pressure Sensor
|
Nominal range
|
250kPa, 600kPa, 1Mpa, 1.6Mpa, 2.5Mpa, 4MPa,
|
|
6MPa, 10MPa, 16MPa, 25Mpa
|
Pressure reference
|
Gauge, Sealed guage, Absolute
|
Overload
|
1.5~2 times nominal scale
|
Zero offset
|
±2mV
|
Full scale output
|
>55mV(typical, 1.5mA power supply)
|
Accuracy
|
±0.25%F.S ±0.5%F.S
|
Long term stability
|
±0.2%F.S/year
|
|
|
Electrical Specifications
|
|
Excitation
|
1.5mADC
|
Insulation resistance
|
>250MΩ(250VDC)
|
Bridge resistance
|
3kΩ~6kΩ
|
Electrical connection
|
4 wires (5 wires available)
|
|
|
Environmental
|
|
Operating temperature range
|
-45~125ºC
|
Compensated temperature range
|
-10~70ºC
|
Thermal sensitivity coefficient
|
≤±0.02%F.S/ºC
|
Thermal zero coefficient
|
≤±0.02%F.S/ºC
|
Physical Specification
|
|
Process connection
|
OD16mm "O" Ring
|
Process media
|
Gas and liquid
|
Materials wetted by process
|
Stainless 316L standard
|
|
|
Fill fluid
|
Silicon oil or olive oil(sanitary centrifugal, for special only)
|
Weight
|
Approx 25g
|
