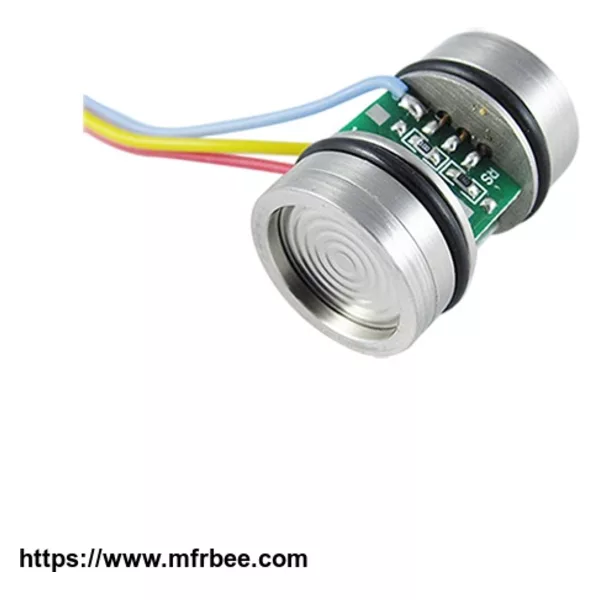

Differential Pressure Sensor (HBD10)
Product Quick Detail
- FOB Price
- USD $34.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- plactic pad
- Delivery
- 15 Days
Specifications
Electric Performance
Power supply: ≤2.0mADC (1.5±0.0015 suggest)
Electric connection: 100mm silicon rubber flexible wires
Common mode voltage input: 50% of input (typ.)
Input impedance: 3kΩ～8kΩ
Output impedance: 3.5kΩ～6kΩ
Response (10%～90%): <1ms
Insulation resistor: 100MΩ, 100VDC
Overpressure: to see Order Guide
Max. static pressure: 20MPa
Zero drift/static pressure: ≤0.5mV/MPa
Construction Specification
Diaphragm material: stainless steel 316L
Housing: stainless steel 316L
Pin: silicon rubber flexible wire
O-ring: Vinton
Net weight: approx 36g
Environment Condition
Position effect: deviate 90° from any orientation, zero change ≤0.2%FS
Shock: no change at 10gRMS,（20～2000）Hz
Impact: 100g, 11ms
Media compatibility: the gas or media which is compatible with stainless steel and Viton
Basic Condition
Media temperature:（25±1）℃
Environment temperature:（25±1）℃
Shock: 0.1g (1m/s/s) Max.
Humidity:（50%±10%）RH
Local air pressure:（86～106）kPa
Power supply:（1.5±0.0015）mADC
Basic Specification
| Pressure range |
10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa
(bar and psi unit available) |
||
| Pressure reference | Differential pressure | ||
| Overpressure | Range | Positive Overpressure | Negative Overpressure |
| 35kPa | 70kPa | 35kPa | |
| 70kPa | 150kPa | 70kPa | |
| 100kPa | 200kPa | 100kPa | |
| 250kPa | 500kPa | 250kPa | |
| 400kPa | 800kPa | 400kPa | |
| 600kPa | 1200kPa | 600kPa | |
| 1MPa | 2MPa | 1MPa | |
| 1.6MPa | 3.2MPa | 1MPa | |
| 2.5MPa | 5MPa | 1MPa | |
| Output signal | |||
| Zero output | ±2mV | ||
| Span output | ≥40mV (≤35kPa)|≥60mV (Other ranges) | ||
| Specification | |||
| Accuracy (linearity, repeatability and hysteresis) | ±0.25%F.S. (Typical) | ||
| Excitation | 1.5mA (Typical) | ||
| Compensated temp. | 0℃-60℃(≤35kPa)|-10℃-70℃(Other ranges) | ||
| Operating temp. | -40℃-125℃ |
