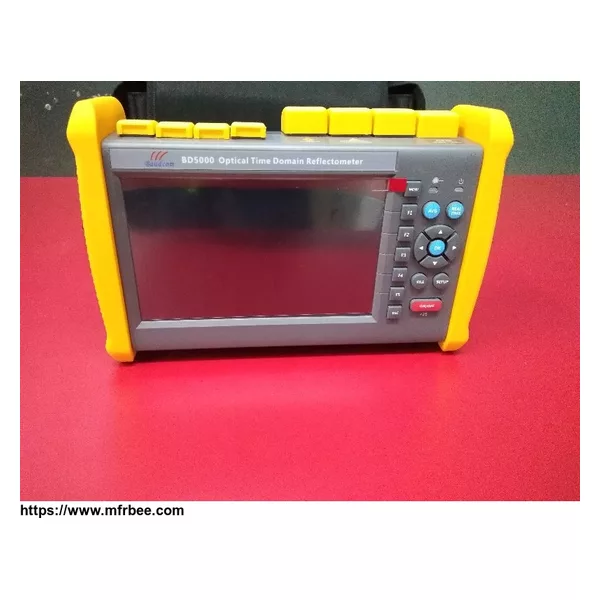

5000 Series Optical Time Domain Reflectometer,OTDR

If you have interest in our product,please feel free to contact me!

Shanghai Baudcom Communication Device Co.,Ltd

Visit US at: http://www.baudcom.com.cn http://www.e1-converter.com

Skyper ID: baudsales01 WhatsApp:+86 17317809328

Tel: 0086-21-37709251 Facebook:Cano Cui Wechat ID:baudcom01

Description:

BAUDCOM 5000 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; The 5000 series is specially designed for that kind of application.

It’s economic, having outstanding performance. The ODTR is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes ODTR more smart and compact and multi-purpose. Whenver you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, the ODTR can be your best assistant.

Features:

1. Integrated design, smart and rugged.

2. Small and light, easy to carry.

3. 1625nm online detection module with filter is available as a option for a online FTTx/PON detection.

4. Multi-measuring modes, simple to use, finish measurement by just one button.

5. Realtime measuring function, convenient to monitor the splicing process.

6. Internal large power visual laser source for accurate positioning the closer fault point.

7. Internal stable laser source.

8. Optical power meter function is offered as a option.

9. Warnning function could prevent module of OTDR damaged by optical signal.

10. Integrated with Screenshot function.

11. PC Remote access and control function is available via RJ45 interface.

12. Support multi-language display and input, friendly interface, visual keyboard capable.

13. Integrated with large internal memory.

14. Provide data simulation software to process, generate and print report.

15. Battery indicator function.

16. Long working hours for outdoor operation.

Ordering Information:

BD5000-D35,Optical Time Domain Reflectometer (OTDR),\"Dynamic Range:1310nm/1550nm 35/33dB\",\"Event/ Attenuation Dead zone: 0.8M/4M\",\"Distance (Km)：4m-240km\"
