rail guided heavy duty die carbon steel transfer trolley

Place Of Origin
henan
Minimum Order
1
Packaging
Packing with tarp and wooden case
Delivery
30 Days

​rail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handling

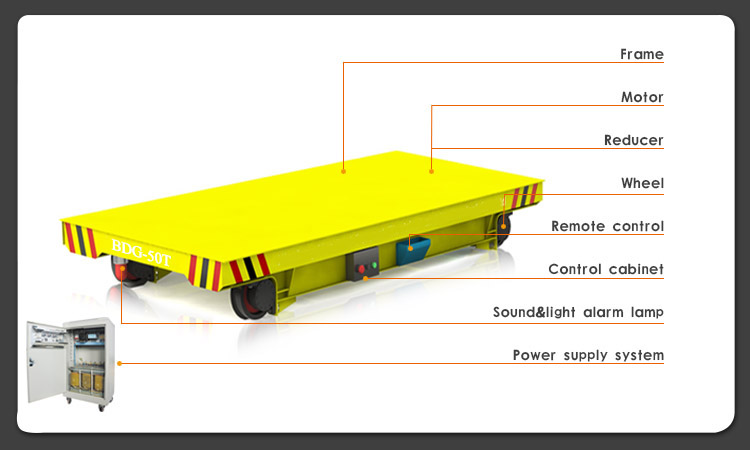

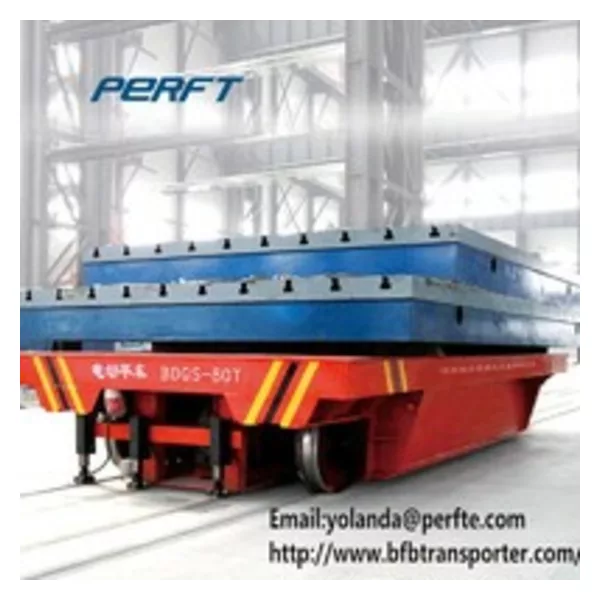

Detailed Image ofRail Guided Flat Car machinery parts electric flat transfer carts on rails for industrial material handling



Advantages and functions of therail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handling


1.Customizing products according to customer Rail.
2.No harm to the ground ,can not lead to impairment for the cement ground, and can run freely, go forward, back forward, turning.etc.
3.The ​rail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handlingis battery powered, so only charged fully.

4.The ​rail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handlingcan it run freely without limited distance.
5.The​rail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handlingwill be provided getting for your inquiry.
6.The ​rail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handlingare customized as per your true demand.

7.Efficient work according to orbit.


Technical parameter table ofrail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handling

Model 2t 20t 50t 100t 150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000

Width(W) 1500 2200 2500 2800 3000

Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Battery Voltage(v) 24 48 48 72 72
Battery Capacity(Ah) 180 180 330 440 600

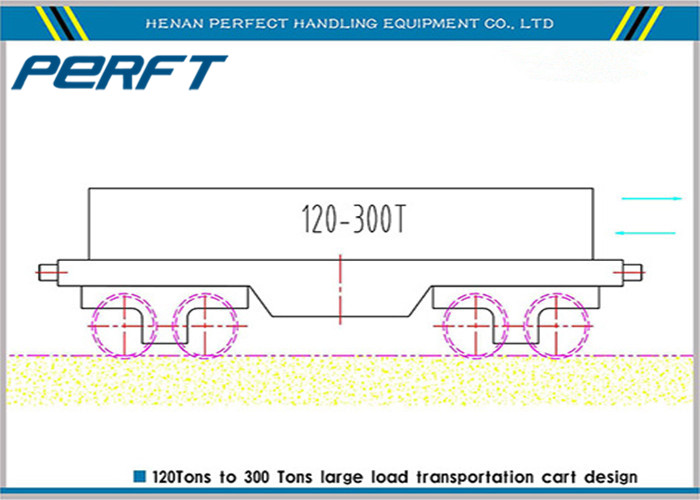

The Scheme of therail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handling

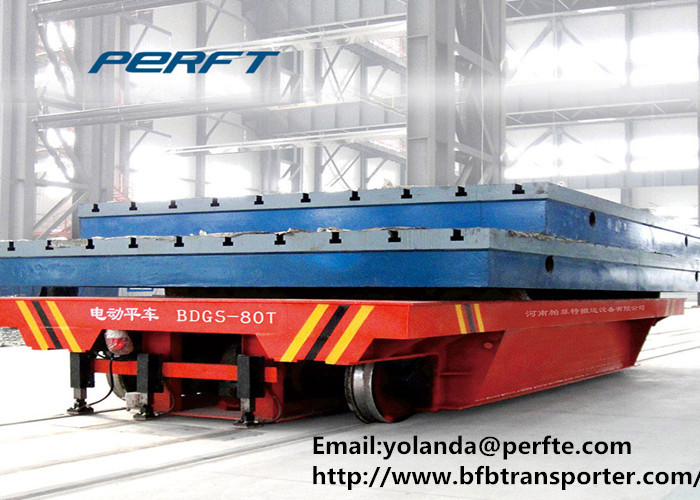

Application oftherail guided heavy duty die carbon steel transfer trolley for heavy duty steel material handling

Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys.TheNew Style Industrial Material Transportation Trolley-40t Trackless Transfe Carthas been highly approved by our customers.

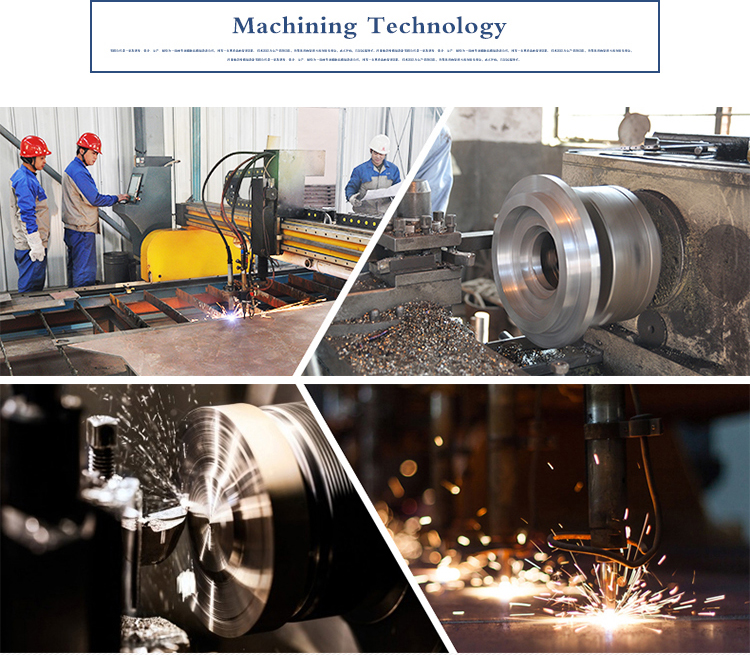

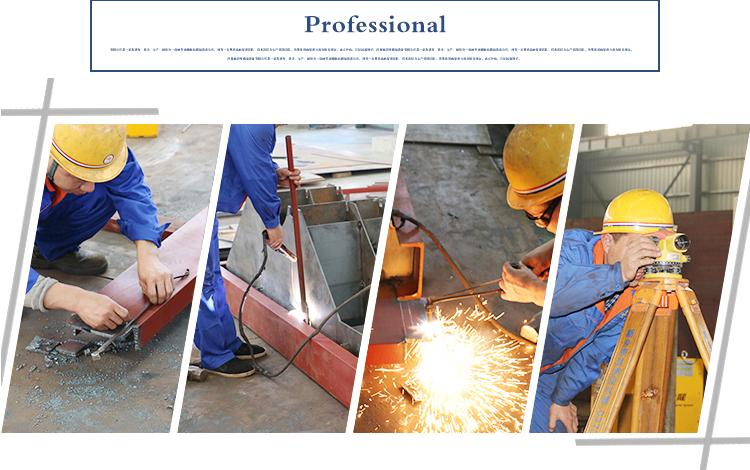

Processing Line of Our Material Handling Equipment

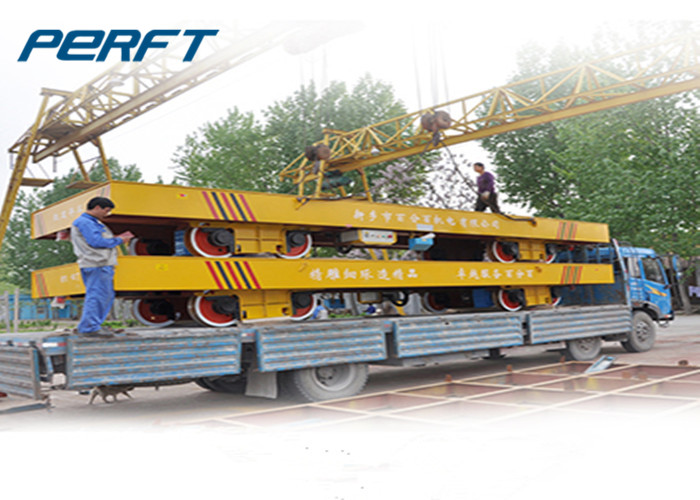

Packaging & Shipping of theheavy duty steel coil transfer cart for steel plant on rails for steel coil and aluminium cargo transportation


Our Serviceof theheavy duty steel coil transfer cart for steel plant on rails for steel coil and aluminium cargo transportation


The Certificates

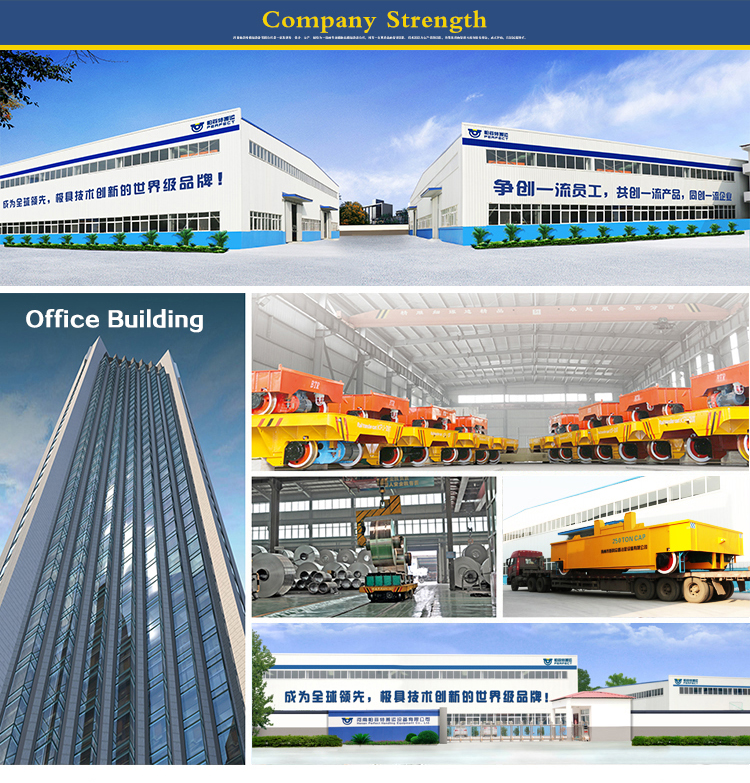

Our Factory


Q & A

1.Q:What is the MOQ?

A: At present, our MOQ is 1 set.

2.Q: What is the size and load of this Rail Transfer Car ?

A:The size and load of our this Rail transfer car is customized design according to your requirement.

3.Q:Can choose the power supply?

A:Yes,such as the cable drum,rail powered,busbar powered,trailing cable powered,etc.

4. Q: What is the leading time, delivery term, and payment term ?

A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
