72v 40ah lifepo4 battery pack for emotorcycle
Product Quick Detail
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $890.00 / Piece
- Minimum Order
- 1
- Packaging
- 1pcs each carton box
- Delivery
- 15 Days
Specifications
1. Battery Parameter
We have battery packs from 12v to 400v with 12ah to 200ah, here taking 72v 40ah as an example.
More battery packs are available, please see the left of this web page.
| 72V 40Ah lithium polymer battery pack | ||
| Mechanical | Mode | PN85188236 |
| Cell & Connection Mode | Ternary/Li(NiCoMn)O2, 19S1P | |
| Dimension(D*W*H) | 253.5*191*169MM | |
| Weight | 15.8KG | |
| Electrical Characteristics | Rated Capacity | 40Ah |
| Min Capacity | 39Ah | |
| High Rate Discharge Capacity | > 90% Rated Capacity | |
| Discharge Capacity @ -20ºC(-4ºF) | > 70% Rated Capacity | |
| Nominal Voltage | 72V | |
| Working Voltage | 55-84V | |
| Load Voltage | ≥ 55V | |
| Energy | 2880Wh | |
| Internal Impedance(@ 1000Hz.) | ≤ 50mΩ | |
| Cycle Life | >2000 Cycles @1C 100% DOD | |
| Months Self Discharge | ≤ 5% @ 25ºC(77ºF) | |
| Efficiency of Charge | 100% @ 1/3C | |
| Efficiency of Disharge | 95% @1C | |
| Standard Charge | Max Charge Voltage | 84V |
| Charge Cut-off Voltage | 84V | |
| Charge Current | 1/3C, 13.3A | |
| Max Charge Current | 40A | |
| Standard Discharge | Standard Current | 40A |
| Max Discharge Current | 3C, 120A | |
| Discharge Cut-off Voltage | 55V |

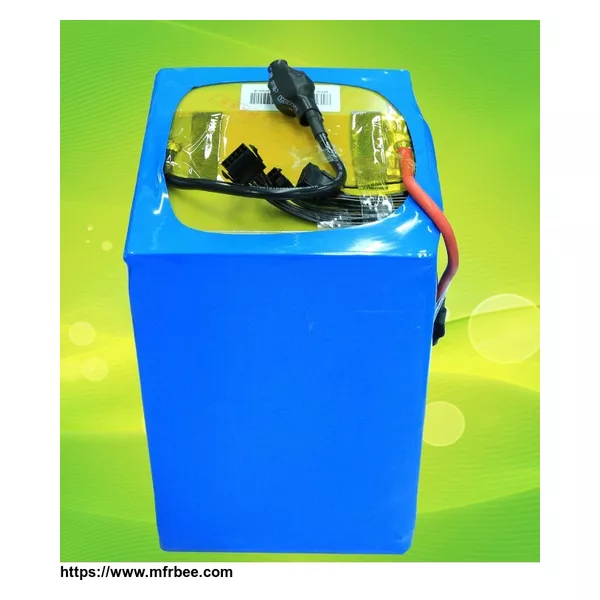

Pictures of72V 40Ah lithium polymer battery pack
2. Main Features of Our EV Battery Cells
1. High energy density
| | lifepo4 battery cell | LiNiCoMn battery cell (ab.NCM battery) |
| weight energy density | 150wh/kg | 200wh/kg |
| volume energy density | 280wh/L | 334wh/L |
2. Low internal resistance
Methods of reducing the internal resistance:
**Using carbon coated aluminum foil
**Multiple electrode tab design
**Increasing the width of electrode tab
**Coating PVDF on battery separator
**Pore-creating artificially
3.Long lifespan
Usable for more than 2,000 charge-discharge cycles
> 4 times than lead acid battery
> 2 times than li ion battery
4.Excellent performance in high and low temprature
Usable in extremely cold and hot environments (-20 to 60 ºC)
