Smoke paper printing and gluing machine
Product Quick Detail
- FOB Price
- USD $40,000.00 / Piece
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- In seaworthy package.
- Delivery
- 60 Days
Specifications
Nikki zhang
Tel/wechat/WhatsApp:+86 13559377117
Q Q：3522924781
E-mail:qztfkj05@qztfkj.com
http://www.qztfkj.com/
http://www.qzyjkj.com/
http://www.balloonmachine1.com/

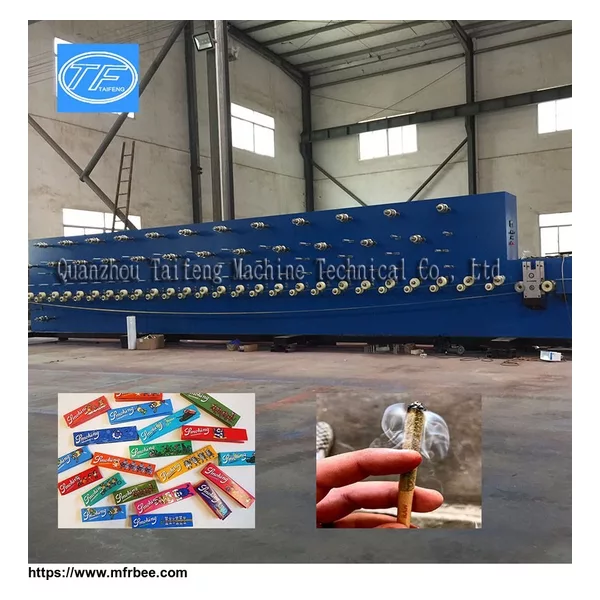

Smoke paper printing and gluing machine
Smoke paper printing and gluing machine
Application:
It is used to make all kinds of specification’s printing and gluing smoke paper such as smoke paper, threaded paper, brown smoke paper and so on.
Feature:
1. Quantity of color printing:1-4.
2. Group of color printing can be selected to add or reduce by customer’s requirements, and the both sides of smoke paper can be continuously finished watermark printing and gum gluing at the same time.
3. It will be set a converter motor on main machine.
4. It adopts magnetic clutch and automatic tension system on unwinding section and unwinding traction.
5. It adopts torque motor on rewinding and rewinding traction.
6. It adopts pneumatic system on printing roller, traction roller and scraper blade.
7. Way to install plate: Installation with roller.
8. Ink circulation system.
Main technical parameter:
| Model | TF-PP550 | TF-PP700 |
| Diameter of printing plate | 100-320mm (It can be customized) | |
| Max. width of printing | 550mm | 700mm |
| Diameter of rewinding and unwinding | 1000mm | 1000mm |
| Speed of printing | 5-60m/min | 5-60m/min |
| Printing precision | ≤0.15mm | ≤0.15mm |
| Heating mode | Electricity | Electricity |
| Power | 44kw | 46kw |
| Weight | 3000KG | 4000KG |
| Dimension(L*W*H) | 6000*1100*2500 | 6000*1500*2500 |
