API High pressure long radius swivel joints

FOB Price
USD $15.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
in wooden pallets/bundle
Delivery
15 Days

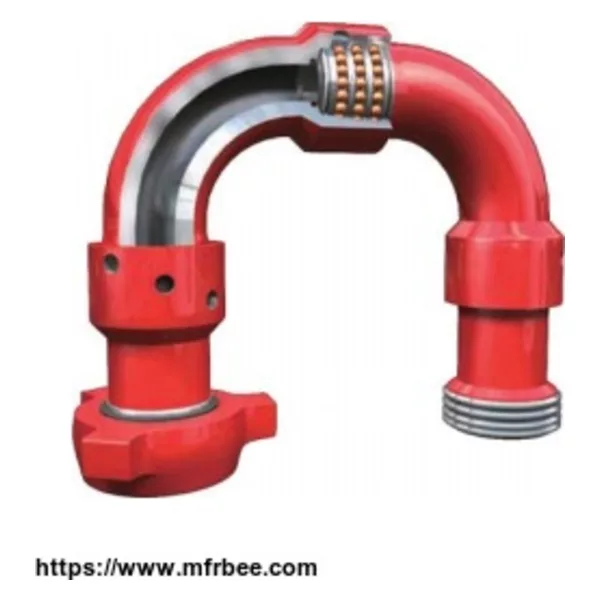

API High pressure long radius swivel joints
Swivel joints manufactured by our factory is a metal pipe joint with integral ball bearing,with size ranging from 1” to 4” and rated WP ranging from 2000psi ---20000psi.Various types of repair kits are available,which is suitable for normal or low temperature,or H2S environments.
Swivel joint can be classified into long and short radiuss.Long radius swivel joints can minimize fluid shock and has better performance of resistance for souring and erosion.We also need to use short radius swivel joints for low pressure operation due to limited installation space.

Product Name Swivel joints
Material carbon steel,stainless steel
Color customer's requirement
Standard API 16C & NACE MR 0175
Working Pressure
42Mpa ~140Mpa
Nominal Bore 1"~4"
Working temperature -29°C~121°C(Class PU)
Working Medium
oil、natural gas and gas containing H2S、CO2
