Engine |
Make: SINOTRUK
Diesel:4-stroke direct injection diesel engine Engine model:WD615.62,EuroⅡemission standard 6-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output:266 hp(196KW)at 2600 rpm Maximum torque:1100 Nm at 1100-1600 rpm Number of cylinder :6 Displacement:9.726 L Specific fuel consumption:198g/KWh Cooling system filling quantity(long-term filling):40 L Thermostat with 71℃opening begin |
Clutch | 430CPull type diaphragm spring clutch.Friction disk diameter: 430mm |
Transmission |
HW13710,10 forward & 2 reverse
Ratio:14.10 10.65 7.80 5.82 4.32 3.27 2.47 1.81 1.35 1.00 12.33(R) 2.86(R) |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Front Axle | Steering with double T-cross section beam |
Rear Axle |
Pressed axle housing, central single reduction with differential locks between wheels and axles
Ratio: 4.8 |
Chassis |
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspention:15 leaf semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers Aluminum fuel tank:300 l capacity with locking fuel cap, fitted to the off side of the chassis |
Steering |
ZF8098,hydraulic steering with power assistance
Ratio:22.2-26.2 |
Brakes |
Service brake: dual circuit compressed air brake
Parking brake (emergency brake):spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake ABS |
Wheels & Tyres |
Rims: 8.5-22.5
Tyres:295/80R22.5 Option:12R20 tube ,12R22.5 tubeless |
Electrics |
Operating voltage:24 V, negative grounded
Starter:24 V,7.5Kw Alternator:28 V,1500 W Batteries:2×12 V,165Ah Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light |
Dimensions in mm |
Wheel base 4600
Front wheel track 2022 / 2041 Rear wheel track 1850 Front overhang 1500 Rear overhang 2277 Approach angle(°) 23 Departure angle(°) 15 Overall dimension(L x W x H mm) 8865x2500x3290 |
Dead weight 8840
Gross vehicle weight 16000 |
|
Performance |
Maximum driving speed(km/h) 90
Maximum gradeability(%) 39 Minimum ground clearance(mm) 298 Minimum turning circle(m) 18.6 Fuel consumption(1/100km) 26 |

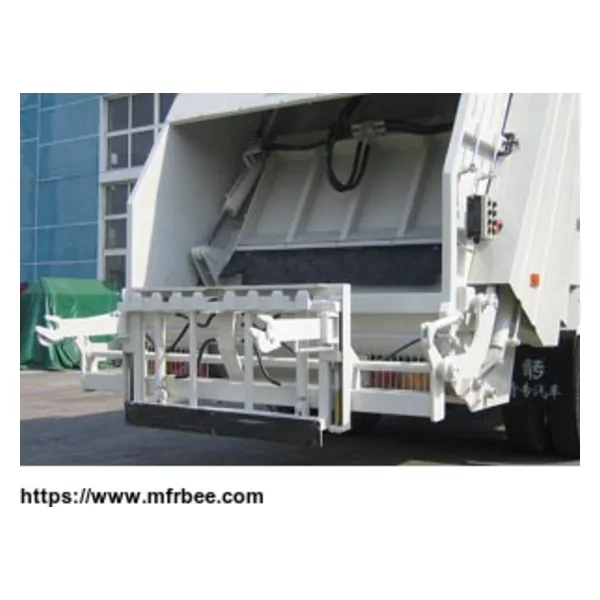

Body |
Volume of body(m3) 16
Volume of filler(m3) 2.0 Time of one filling cycle(s)≤25 Lifting time of filler (s) 8-10 Time of discharge (s)≤40 Pressure of fluid system (Mpa) 20 Front/rear sewage capacity (L) 250+150 Max compression force (kg)>25000 |
