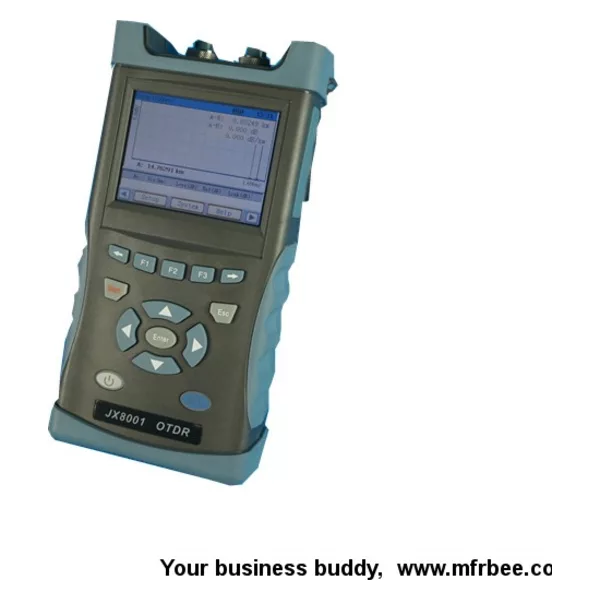

Handheld OTDR

JX8001 handheld OTDR is the newest instrument designed for testing FTTx network. It´s mainly used to measure the physical characteristics of optical fiber under test, such as the length,the transmission loss and the splice loss etc.. It can also locate the faults or breaks of optical fiber. It´s widely applied in the manufacture, construction and maintenance in optical fiber communication system.
　　JX8001 handheld OTDR has the most advanced technology of double-color & material integrative mould ,which is novel and beautiful in appearance. In addition, it´s equipped with comfortable gallus for carrying conveniently.

ο handheld,lightweight and convenience for carrying
ο Advanced anti-reflective TFT LCD,visible clearly in field
ο 1.6m extra-short event dead zone
ο Communication light alert automatically
ο 0.25m high resolution,65534 sampling points
ο Fast auto measurement,one-button operating
ο Double USB interfaces, supporting USB stick and direct cable download to PC via ActiveSync
ο Supporting Bellcore GR196 file format in writing or reading
ο WinCE operation system, double operating interface of Chinese and English
ο Built-in lithium battery with high capacity for over 10 hours of operating life
ο Visible fault locating (VFL)
ο Universal FC/PC,FC/SC,FC/ST connector type, it´s convenient for surface cleaning
ο Unique function of updating system on-line, returning to factory is unnecessary

Extra-short event dead zone
JX8001 handheld OTDR has extra-short event dead zone, which is suitable for testing short optical fiber and pigtail optical fiber.
