It is mainly composed by three parts:

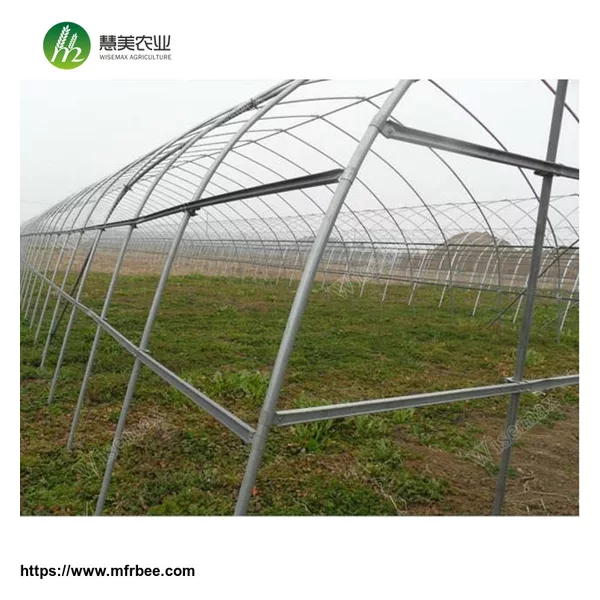

1. Hot galvanized steel pipe structure: 25mm/32mm/40mm/50mm/60mm(Thinckness:1.0-2.0mm) steel pipe for choose.
2. Covering material: 80-200 micron 3 layers extruding film for choose.
3. Connection accessories: circlip, card slot,clamp,top pressure spring,squeeze film line spring, squeeze film line, insect net, squeeze film clip, roll up device, door angle, anchor, slot-fixed clip, duckbill clip, arch connection pipe.
All the parameter can be changed according to your requirment.
single span tunnel greenhouse | |
Width | 6m,7m,8m,9m,10m,12m |
Length | 10-100m |
Shoulder width | 1.3-3.3m |
Total height | 2.5-5.0m |
Wind load | 0.35KN/m2 |
Snow load | 0.25kN/m2 |
Rainfall | 140mm3/h |
Plants hanging load | 0.15KN/m2 |
(1)Cooling Pad and Fan System
(2)Lighting System( philips sodium lamp)
(3)Heating System (water, gas, coal heating)
(4)Ventilation System
(5)Indoor & Outdoor Shading System
(6)Control System
(7)Mobile / Fixed Seedbed
(8)Irrigation & Fertilization System
